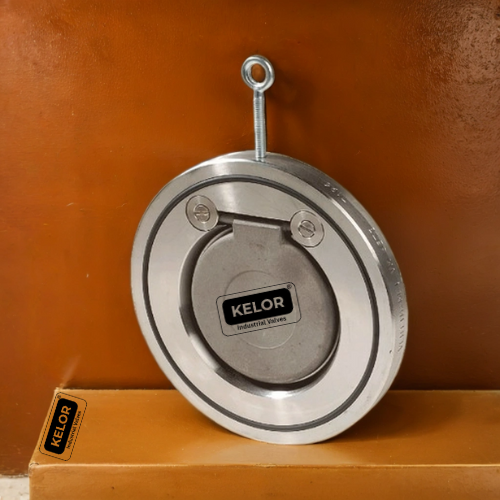

Wafer Check Valve

A wafer check valve is a compact, effective arrangement built to control the heading of stream inside a channeling framework. Not at all like their bulkier flanged partners, wafer check valves are outlined to fit cozily between two pipe spines, making them an fabulous alternative for frameworks where space is limited.

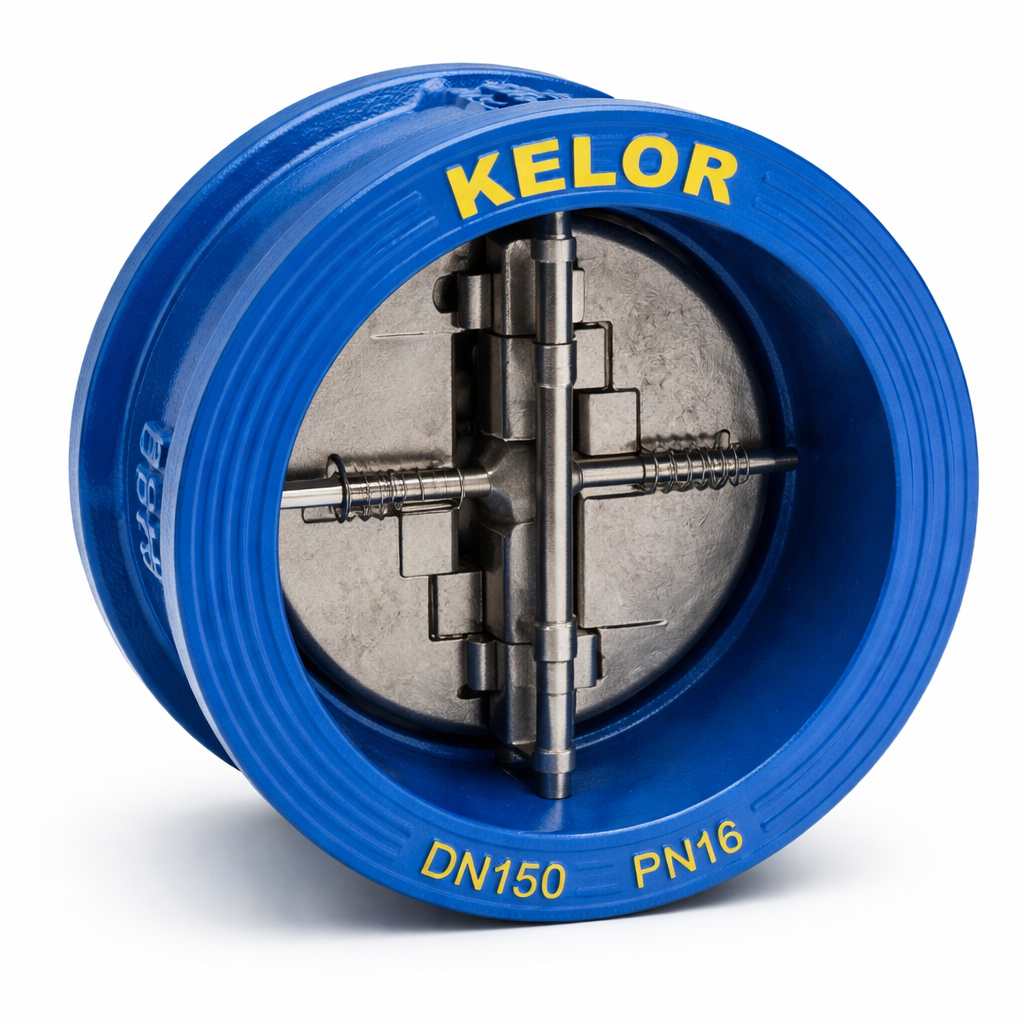

At the heart of a wafer check valve is a pivoted circle (or some of the time a dual-plate component) that swings open when liquid moves in the expecting course. As the stream pushes the circle, it turns, permitting fluid or gas to pass through the valve with negligible limitation. If the stream inverts, the plate rapidly closes, avoiding backflow and securing delicate components downstream. This straightforward plan disposes of the require for outside incitation, depending instep on the weight differential over the valve to do the job.

The streamlined body of a wafer check valve makes a difference guarantee smoother, less turbulent stream compared to a few other check valve sorts. This is particularly important in applications where keeping up ideal stream rates is crucial—think HVAC frameworks, chemical handling plants, or civil water frameworks. Since of their lean profile, wafer check valves are a go-to choice in retrofit ventures or wherever each inch of pipeline genuine bequest things.

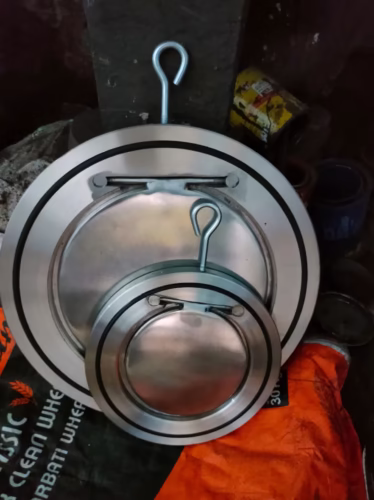

Wafer check valves play a significant part in keeping up the astuteness of your pipeline by avoiding undesirable backflow. Their streamlined plan highlights a swinging plate that reacts right away to changes in stream direction—allowing liquid to pass openly forward, but fixing closed the minute any inversion occurs.

What sets wafer check valves separated from conventional flanged check valves is their compact, molded body. This development not as it were makes them perfect for establishments with restricted space, but too gives sufficient room for the circle to move. As a result, the valve can accomplish full opening, guaranteeing unhindered stream and minimizing weight drop over the line.

By making a tight seal at whatever point stream endeavors to switch, wafer check valves effectively secure pumps, gear, and delicate forms from potential harm caused by backflow—making them an basic component in water treatment, chemical preparing, HVAC frameworks, and more.

When comparing wafer check valves to their flanged partners, the most eminent refinements come down to their development and how this impacts stream efficiency.

Space-Efficient Design: Wafer check valves are built with a compact, streamlined body that slips effectively between pipeline ribs. This thin profile is perfect for circumstances where establishment space is at a premium and a bulky flanged valve would be challenging to accommodate.

Disc Operation and Flow: The agent distinction lies in the way the valve circle moves. Wafer check valves permit the circle to swing open completely inside a extraordinarily molded depth, maximizing the accessible entry zone. This plan minimizes stream confinement, guaranteeing your framework gets the unhindered stream it demands—especially basic in applications requiring tall efficiency.

Flanged Valve Limitations: In differentiate, flanged check valves regularly house the plate inside the same space as the interfacing pipeline ribs. This can limit the disc’s run of movement and, subsequently, throttle the stream through the valve.

In rundown, wafer check valves exceed expectations where space-saving establishment and full-flow execution are fundamental, setting them separated from conventional flanged styles.

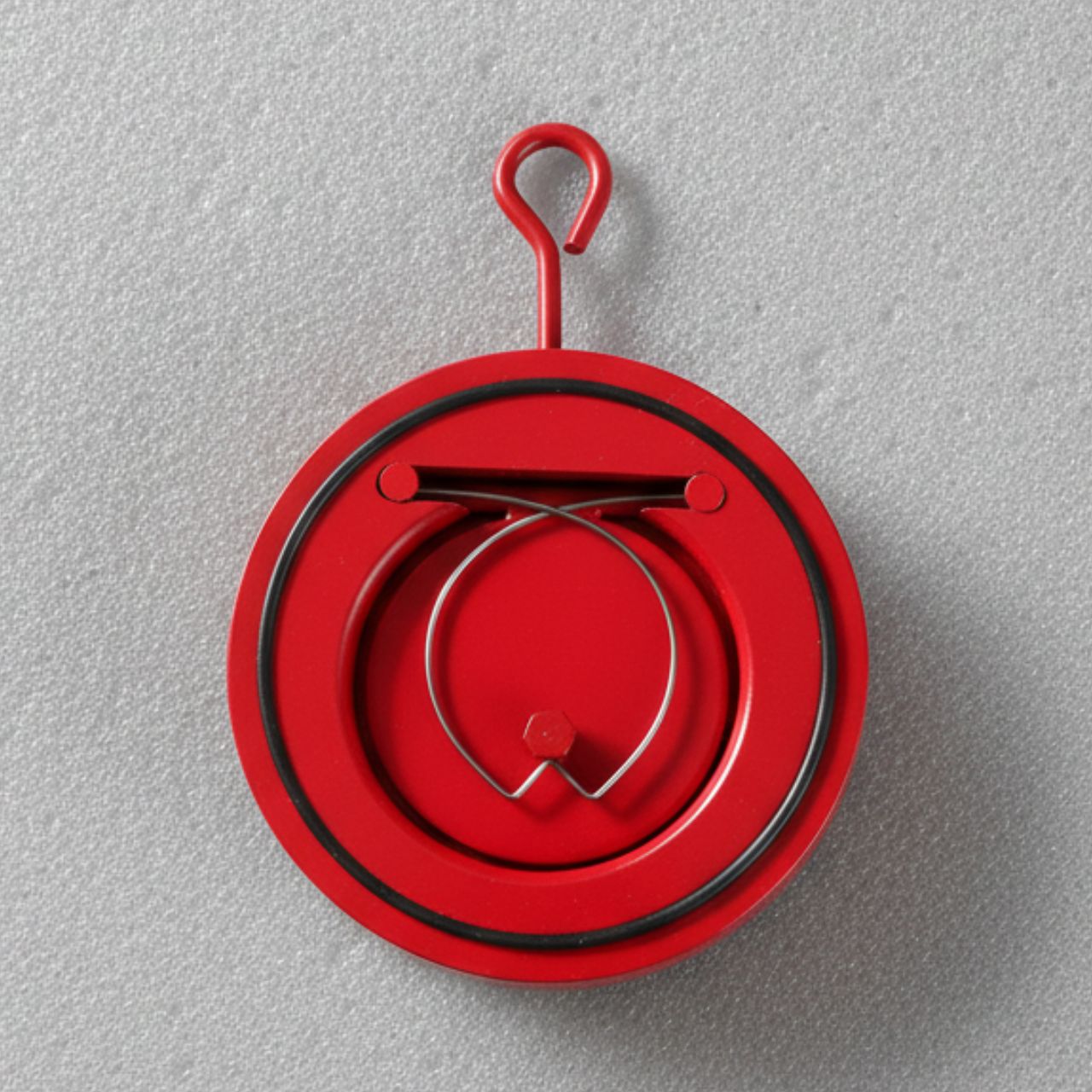

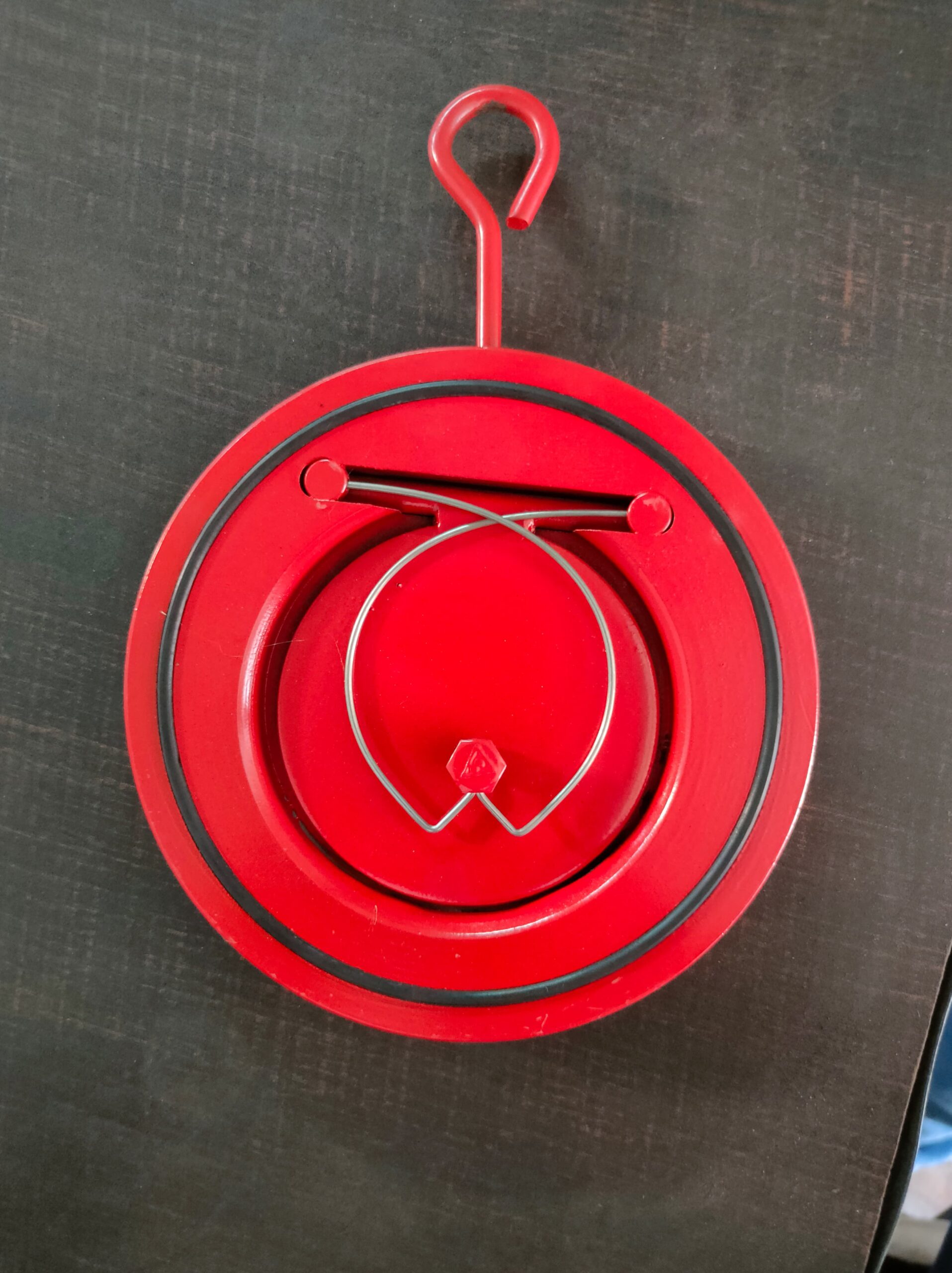

Spring components are a game-changer when it comes to wafer check valve execution. By joining a spring-loaded plan, these valves offer a few key points of interest over conventional swing types:

Fast, Solid Closure: The spring quickly pushes the plate back into put as before long as stream ceases. This quick reaction makes a difference anticipate invert stream, securing pumps and downstream equipment.

Minimized Water Hammer: Because the spring snaps the valve closed some time recently backflow can construct up critical weight, it significantly diminishes water hammer—saving you migraines and upkeep costs.

Flexible Installation: Spring-loaded wafer check valves work successfully whether mounted vertically (with upward stream) or on a level plane, making them a flexible arrangement for tight spaces and shifted channeling layouts.

Enhanced Fixing at Moo Pressure: Standard wafer check valves may not seal completely at lower weights. The spring guarantees a tight seal is kept up, indeed when framework weight drops.

In applications extending from water dispersion and HVAC frameworks to compressed discuss and chemical preparing, this spring-assist instrument deciphers into more noteworthy unwavering quality, compact establishment, and longer benefit life. For requesting situations where security and productivity matter, the spring does the overwhelming lifting—literally and figuratively—inside your wafer check valve.

Wafer check valves are outlined for adaptable establishment and can be mounted in either a level pipeline or in a vertical pipeline with upward stream. This flexibility makes them a helpful choice for different framework formats whereas guaranteeing ideal execution.

Construction: Wafer design, swing or spring-loaded plan for dependable one-way stream control.

Body Material: Robust carbon steel development for upgraded quality and erosion resistance.

Sealing Options: Available with NBR O-ring seals for tight, leak-resistant execution or metal-to-metal seats for included durability.

Pressure Versatility: Suitable for both tall and moo weight applications over different systems.

Orientation: Installs effectively in both vertical (upward stream as it were) and level pipelines, advancing adaptable placement.

Compact Design: Space-saving profile for establishments where impression matters.

Typical Applications: Efficiently oversees stream in water, warming frameworks, HVAC, discuss compressors, and common mechanical processes.

Size Availability: Typically advertised in sizes extending from 1 1/2″ up to 12″, covering a wide extend of channeling requirements.

These cast press wafer check valves are broadly acknowledged for their tried and true operation and financial esteem, making them a commonsense choice for general-purpose and mechanical applications.

One of the characterizing highlights of wafer check valves is their absolutely molded body.

But why does this matter?

Unlike conventional flanged check valves, which frequently confine development due to restricted space interior the pipeline, the molded body of a wafer check valve gives a committed depression for the plate to move. This mindful plan guarantees the circle can swing open completely—with negligible obstruction—so liquids or gasses can stream at full capacity.

The advantage here is clear:

Unobstructed Flow: The circle works unreservedly, diminishing the hazard of stream limitation commonly found in bulkier, flanged alternatives.

Saves Space: The thin profile and coordinates body make wafer check valves perfect for cramped establishments where other check valves might not fit.

Efficient Performance: By permitting the plate to completely open, weight misfortune is minimized, driving to more noteworthy efficiency—especially in frameworks where keeping up ideal stream is critical.

Whether you’re working with water, steam, or chemical media, this intelligent bit of designing is key to dependable, high-performance operation in tight spaces.
