Description

Pneumatic Knife Gate Valve Supplier India | Spring Return & Double Acting | CI / DI / WCB / SS304 / SS316 | DN50–DN600 | PN10–PN16 | ETP / Mining / Cement / Power Plant | KELOR

Supplier: Krishna Industries (KELOR) – Ahmedabad, Gujarat, India
Established: 2017 | GSTIN: 24AKLPP6499B1ZT | IEC: AKLPP6499B
MOQ: 10 Nos | Body: CI / DI / WCB / SS304 / SS316
Actuator: Spring Return & Double Acting | Air: 4–7 bar | Sizes: DN50–DN600

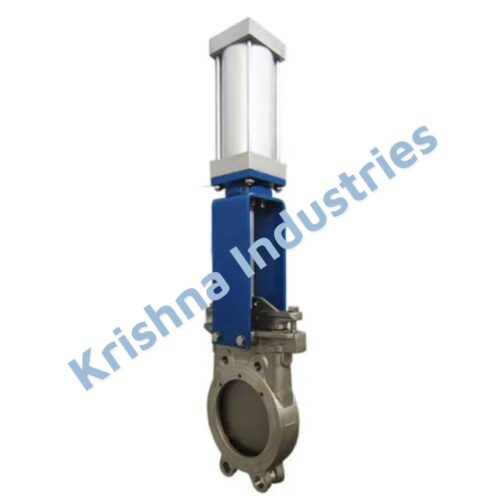

Pneumatic Knife Gate Valve Supplier in India

Krishna Industries (KELOR), based in Ahmedabad, Gujarat, supplies Pneumatic Knife Gate Valves — CI / DI / WCB / SS304 (CF8) / SS316 (CF8M) body — SS304/SS316 gate — EPDM / NBR / PTFE / Viton seat — spring return single acting (fail-safe closed or fail-safe open) and double acting — 4–7 bar clean dry air — complete accessory package (solenoid valve, limit switches, FRL unit, position indicator) — DN50 (2″) to DN600 (24″) — PN10 / PN16 — GST invoice — MOQ 10 Nos — Pan India dispatch from Ahmedabad.

A pneumatic knife gate valve combines the sharp-edged gate that cuts through slurry, fibrous pulp, and semi-solid media with a pneumatic cylinder actuator for fast, remote, and DCS/PLC-integrated operation. Furthermore, spring return versions provide inherent fail-safe behaviour — the valve automatically moves to a defined safe position on instrument air failure, without any battery backup or UPS. Consequently, pneumatic knife gate valves are the standard automated isolation valve for Indian ETP/STP, mining, cement, and power plant slurry applications.

Spring Return vs Double Acting — The Most Critical Specification Decision

The actuator type — spring return or double acting — is the most important parameter on any pneumatic knife gate valve order. Moreover, it is the most frequently misspecified parameter. Specifying the wrong type creates a safety incident or process upset at commissioning. Therefore, always confirm this before raising the purchase indent.

How to Choose — One Question

Ask this: what is the safe state of the process if instrument air supply fails? If the valve must close — specify spring return fail-safe closed (air to open). If the valve must open — specify spring return fail-safe open (air to close). If neither state is specifically required for safety — specify double acting.

Complete Accessory Package — What to Order With the Valve

A pneumatic knife gate valve ordered without the correct accessories cannot be commissioned. In addition, accessories sourced separately from different suppliers frequently cause interface problems on site. Therefore, confirm the complete accessory package at order stage.

1. Solenoid Valve — Mandatory for DCS/PLC Control

The solenoid valve converts the electrical on/off signal from the DCS or PLC into an air on/off signal to the actuator. Without it, the actuator cannot be controlled from the control room. Specify 24V DC for standard PLC digital output — the most common in Indian process plants. Specify 230V AC for older relay-based control panels. NAMUR mounted solenoid mounts directly on the actuator body — it eliminates separate air tubing between solenoid and actuator and is the standard for new installations. Remote mounted solenoid uses tubing from a junction box to the actuator — suitable for existing installations where NAMUR is not practical.

2. Limit Switches — Mandatory for Position Feedback

Limit switches are mounted on the actuator yoke. A mechanical cam activates the switch when the gate reaches fully open or fully closed position. Two switches are standard — one for open, one for closed. The signal is a digital output (24V DC contact) to the DCS or PLC digital input. Without limit switches, the DCS cannot confirm whether the valve is actually open or closed. As a result, the operator cannot verify valve position from the control room — a mandatory requirement for any automated knife gate valve in a modern Indian process plant.

3. Air Filter Regulator (FRL Unit) — Mandatory

The FRL unit filters water, oil, and particulates from the air supply and regulates pressure to the actuator (typically 4–5 bar). Without an FRL unit, wet or contaminated factory air destroys actuator cylinder seals within weeks. Consequently, premature pneumatic actuator failure in Indian industrial plants is most commonly caused by wet compressed air reaching the actuator without filtration. Install one FRL unit per actuator, or per cluster of closely grouped actuators, as close to the actuator as practical.

4. Position Indicator — Recommended for Field Verification

A mechanical flag mounted on the valve stem shows OPEN or CLOSED position visually at the valve — no electrical connection required. Moreover, it allows field operators to confirm valve position without accessing the DCS. It is not a substitute for limit switches in automated systems but is recommended as an additional visual confirmation for field safety checks before maintenance.

Body Material Selection Guide

Technical Specifications

Applications in Indian Industries

ETP and STP — Sludge Isolation

CI or DI body spring return fail-safe closed DN80–DN300. Sludge line isolation, raw sewage inlet, dewatering press feed, scum chamber. 24V DC NAMUR solenoid with PLC control. Spring return fail-safe closed ensures valve closes automatically if air supply is lost — preventing uncontrolled sludge overflow. Consequently, this is the dominant pneumatic knife gate valve application in Indian ETP/STP projects.

Mining and Mineral Processing

DI or WCB body double acting DN150–DN400. Mineral tailings slurry, iron ore concentrate, coal slurry discharge, thickener underflow. Double acting for large bore where spring return force is insufficient. Furthermore, Hardox gate option for severe abrasive mineral slurry service. Fast 2–5 second stroke for automated thickener discharge cycle control from surface SCADA.

Cement Plants

CI or WCB body spring return or double acting DN100–DN300. Cement slurry, fly ash slurry, raw meal slurry. DCS-integrated PLC automation for kiln feed and ash handling. Spring return fail-safe closed for fly ash silo discharge isolation — in case of air failure, silo discharge stops automatically. Additionally, double acting for high-cycle raw material feed valves where spring fatigue is a concern.

Power Plant Ash Handling

WCB or DI body double acting DN200–DN600. Bottom ash slurry discharge, fly ash pond feed, ash slurry pipeline isolation. 415V AC or 24V DC solenoid with DCS integration. Large bore DN400–DN600 requires double acting — spring return force insufficient at this size. Moreover, limit switches confirm open/closed position to DCS for automated ash handling cycle sequencing.

Chemical Plant Corrosive Slurry

SS316 body spring return fail-safe closed DN50–DN200. Acidic or alkaline slurry, chemical waste slurry, corrosive process isolation. PTFE or Viton seat for chemical compatibility. Spring return fail-safe closed for emergency isolation — valve closes on air failure to prevent corrosive media release. Furthermore, ATEX-rated solenoid and limit switches for hazardous area chemical plant locations.

Pulp and Paper Mills

CI or WCB body spring return DN100–DN300. Pulp stock lines, broke chest, white water. Fast stroke cuts through fibrous pulp media reliably. Therefore, pneumatic actuation eliminates manual operation in high-cycle pulp handling where manual handwheel operation is impractical due to cycle frequency.

Related Products — Krishna Industries (KELOR)

• Knife Gate Valve — Hub Page — complete range overview — manual, pneumatic, and electric — CI/DI/WCB/SS body — all applications
• Electric Knife Gate Valve — electric actuated knife gate for remote locations without instrument air and for modulating 4-20mA control
• WCB Knife Gate Valve — Manual — manual handwheel for locations where automation is not required
• Dual Plate Check Valve — install on slurry pump discharge downstream of pneumatic knife gate valve — prevents backflow when pump trips
• Flanged Swing Check Valve — large bore NRV in the same pump station where pneumatic knife gate provides automated inlet isolation

Frequently Asked Questions

1. What is the difference between spring return and double acting pneumatic actuator?

A spring return actuator uses compressed air to move the gate in one direction and a spring to return it to the opposite position when air is removed. As a result, the valve automatically moves to a defined safe position (open or closed) on air supply failure — this is called fail-safe behaviour. A double acting actuator uses air to move in both directions. Therefore, on air failure it stays in its last position — no automatic movement. Specify spring return when a defined fail-safe position is required for process safety. Specify double acting for non-safety-critical high-cycle automation or large bore where spring return torque is insufficient.

2. Why is a FRL unit mandatory upstream of every pneumatic actuator?

Factory compressed air from industrial compressors contains water vapour, compressor oil, and pipe scale. This contaminated air destroys the rubber seals inside the pneumatic actuator cylinder within weeks. Premature pneumatic actuator seal failure in Indian process plants is most commonly caused by wet or oily air reaching the actuator without filtration. An FRL unit (Filter-Regulator-Lubricator) removes water, oil, and particulates before the air reaches the actuator. Furthermore, the regulator limits air pressure to the actuator rated pressure — preventing over-pressure damage. Always install one FRL unit per actuator or per group of closely clustered actuators.

3. What solenoid voltage should I specify — 24V DC or 230V AC?

Specify 24V DC for all new DCS and PLC controlled installations — 24V DC is the standard digital output voltage for all modern Indian DCS systems (Honeywell, Yokogawa, Emerson, Siemens S7, Allen-Bradley). Moreover, 24V DC is inherently safer than 230V AC in instrument enclosures and terminal boxes. Specify 230V AC only for older relay-based control panels where 24V DC is not available. Confirm with the DCS/PLC I/O specification before ordering to avoid mismatch between solenoid voltage and available DCS output card voltage.

4. Can I order the valve without accessories and source them separately?

Technically yes, but this frequently causes commissioning delays. Interface problems between valve actuator and separately sourced solenoid, limit switches, and FRL are common — NAMUR interface compatibility, air port size mismatch, and limit switch cam adjustment for specific actuator travel. Therefore, ordering the complete package from one supplier eliminates these interface problems. Krishna Industries supplies the complete pneumatic knife gate valve package — valve body, actuator, solenoid (24V DC / 230V AC, NAMUR or remote), limit switches, position indicator, and FRL unit — tested and assembled as a complete unit before dispatch.

5. What is the MOQ?

MOQ is 10 Nos. Project orders — 10 to 500+ Nos — with hydrostatic test certificate, actuator functional test report (tested at 4–7 bar air pressure), MTC for body material, and GST invoice. Confirm actuator type (spring return FTC/FTO or double acting), solenoid voltage (24V DC / 230V AC), solenoid mounting (NAMUR / remote), limit switch type, IP rating, and body material at order stage. WhatsApp body material, valve size, actuator type, solenoid voltage, and quantity for pricing within 2 hours.

Conclusion

Krishna Industries (KELOR) supplies Pneumatic Knife Gate Valves for ETP/STP sludge isolation, mining slurry, cement ash, power plant ash handling, chemical plant, and pulp and paper applications across India.

We supply CI / DI / WCB / SS304 / SS316 body — SS304/SS316 gate — EPDM / NBR / PTFE / Viton seat — spring return fail-safe closed or fail-safe open and double acting — complete accessory package (solenoid 24V DC / 230V AC / NAMUR, limit switches, FRL unit, position indicator) — DN50 to DN600 — PN10 / PN16 — 2–15 second stroke — GST invoice, MTC, actuator functional test — Pan India dispatch from Ahmedabad. WhatsApp actuator type, body material, valve size, and quantity for pricing within 2 hours.
