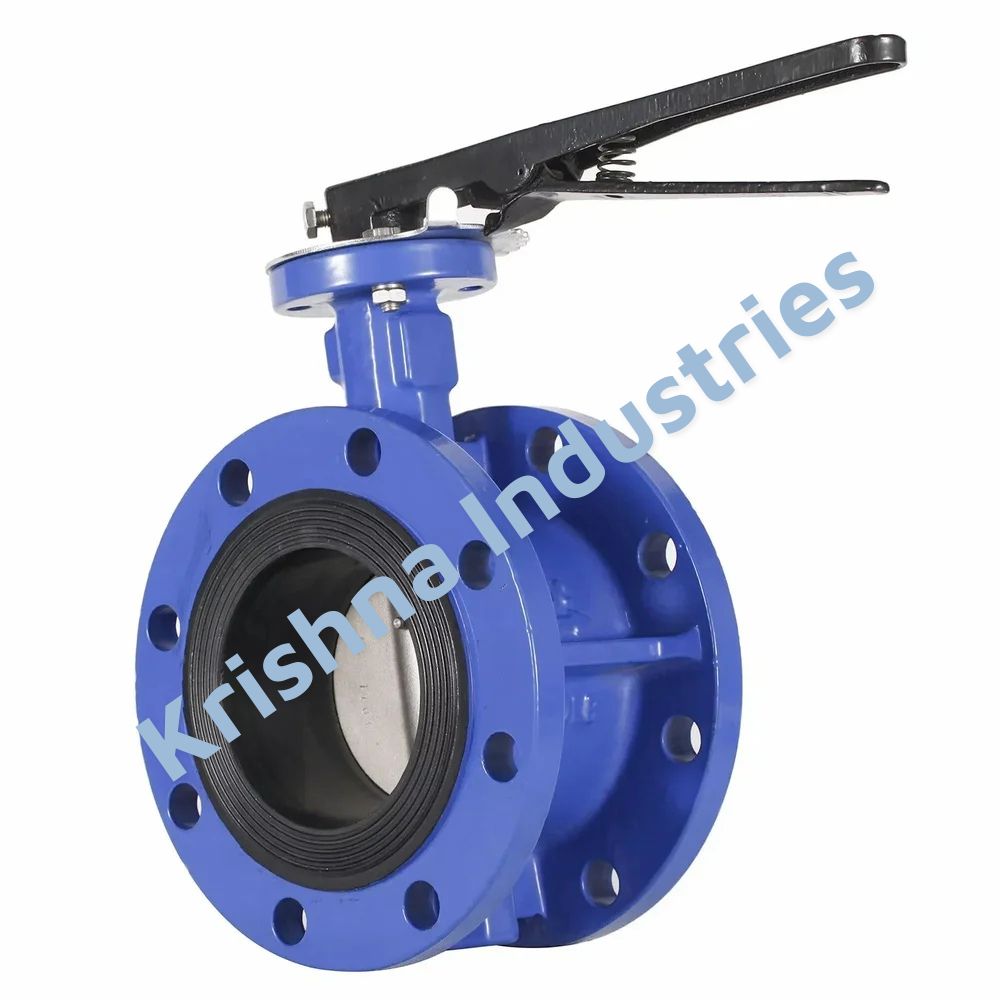

Flanged Butterfly Valves

Description

Flanged Butterfly Valves – Industrial Grade Flow Control Solutions

Krishna Industries – Supplier, Wholesaler, Exporter, Distributor and Trader from Ahmedabad, Gujarat, India

MOQ: 10 Pieces

Payment Terms : 100% Advance Against Purchase Order

Product Overview

Flanged Butterfly Valves are high-performance quarter-turn valves engineered for reliable shut-off and flow regulation in medium to large diameter pipelines. These valves are designed with integrally cast flanges conforming to international standards such as ANSI, DIN, BS, and IS specifications, enabling secure bolted connections to pipeline flanges.

At Krishna Industries, we supply precision-manufactured flanged butterfly valves suitable for water treatment plants, HVAC systems, chemical processing units, fire fighting lines, power plants, irrigation systems, marine installations, and general industrial piping networks.

Our valves are engineered for durability, minimal pressure drop, bubble-tight sealing, and long service life under demanding industrial conditions.

Long Introduction – Industrial Significance & Application Scope

In modern industrial infrastructure, efficient fluid control is critical for operational safety, process stability, and energy efficiency. Among various flow control devices, the flanged butterfly valve has emerged as a preferred solution for large-diameter pipeline systems due to its compact design, lightweight structure, cost efficiency, and quick actuation.

Unlike conventional gate or globe valves, flanged butterfly valves operate using a rotating disc mounted on a shaft. When rotated 90 degrees, the disc moves from fully open to fully closed position, enabling rapid shut-off. The flanged body construction allows direct bolting between pipeline flanges without additional lug or wafer-style retention hardware.

These valves are widely used in systems where space optimization, low torque operation, and quick maintenance are priorities. In comparison to a Wafer Butterfly Valve, the flanged design provides enhanced structural rigidity and is suitable for high-pressure installations. Compared to a Lug Type Butterfly Valve, the flanged type ensures stronger axial retention and is preferred in permanent installations.

In many industrial applications, flanged butterfly valves are integrated alongside Gate Valves, Globe Valves, and Check Valves to create complete flow management systems. They are especially suitable for isolation duty, throttling service, and bi-directional flow control.

Krishna Industries ensures that every flanged butterfly valve supplied is dimensionally accurate, hydrostatically tested, and compliant with relevant industrial standards. As a Supplier, Wholesaler, Exporter, Distributor and Trader from Ahmedabad, Gujarat, India, we maintain strict quality control processes before dispatch.

Technical Specifications

Available Sizes

• DN50 to DN1200 (2” to 48”)

Pressure Ratings

• PN10 / PN16 / PN25
• Class 150 / 300

Body Materials

• Cast Iron (CI)
• Ductile Iron (DI)
• Carbon Steel (WCB)
• Stainless Steel (SS304 / SS316)

Disc Materials

• SS304 / SS316
• Nickel Plated DI
• Aluminum Bronze

Seat Materials

• EPDM
• NBR
• PTFE
• Viton

Operation Types

• Manual Lever Operated
• Gear Operated
• Pneumatic Actuated
• Electric Actuated

Design Features

Robust Flanged Body Construction

The fully flanged body design ensures secure alignment with pipeline flanges, reducing installation errors and enhancing structural integrity.

Low Torque Operation

Precision-machined shaft and disc assembly reduces friction, enabling smooth quarter-turn operation.

Bubble-Tight Shutoff

Resilient elastomeric seating ensures zero leakage under rated pressure conditions.

Compact & Lightweight

Compared to gate valves of similar diameter, butterfly valves occupy less installation space.

Corrosion Resistance

Material selection options allow usage in corrosive environments including chemical and marine industries.

Applications

• Water Treatment Plants
• Effluent Treatment Plants
• Fire Fighting Systems
• HVAC Systems
• Power Generation Plants
• Oil & Gas Pipelines
• Chemical Processing Plants
• Irrigation Networks
• Marine Installations

Quality Assurance

All valves supplied by Krishna Industries undergo:

• Hydrostatic Shell Testing
• Seat Leakage Testing
• Dimensional Inspection
• Material Traceability Verification
• Visual & Functional Inspection

Why Choose Krishna Industries?

Industry Experience

Extensive experience in industrial valve sourcing and supply chain management.

Competitive Wholesale Pricing

Bulk supply capability with competitive commercial terms.

Pan India Supply

Reliable dispatch from Ahmedabad, Gujarat to all major Indian industrial hubs.

Export Capability

International shipping support with export documentation.

Technical Support

Assistance in valve selection based on pressure, temperature and application.

Indian Buyer Focus

For Indian customers, we operate on 100% Advance Payment Against Purchase Order. Our minimum order quantity is 10 pieces. Bulk order pricing available for project requirements.

Frequently Asked Questions (FAQ)

1. What is the minimum order quantity?

Our MOQ is 10 pieces.

2. What are the payment terms for Indian buyers?

100% advance against confirmed purchase order.

3. Are the valves hydro-tested?

Yes, all valves undergo hydrostatic pressure testing before dispatch.

4. Can these valves be used for high temperature applications?

Yes, depending on seat material selection such as PTFE or Viton.

5. Do you provide gear operated models?

Yes, manual lever, gear operated, pneumatic and electric actuated models are available.

6. What standards do you follow?

ANSI, DIN, BS, IS and other international standards.

7. Are stainless steel variants available?

Yes, SS304 and SS316 options are available.

8. Can these valves be used for throttling?

Yes, butterfly valves are suitable for isolation as well as throttling applications.

9. Do you supply for export?

Yes, Krishna Industries exports globally with complete documentation support.

10. From where are you located?

We are based in Ahmedabad, Gujarat, India.

Order Now

For bulk inquiries, project requirements, or technical assistance regarding Flanged Butterfly Valves, contact Krishna Industries – Supplier, Wholesaler, Exporter, Distributor and Trader from Ahmedabad, Gujarat, India.
