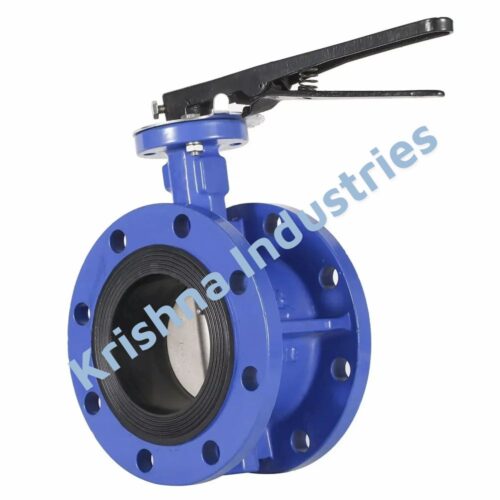

Flanged End Butterfly Valve

Description

Flanged End Butterfly Valve Supplier in India

Flanged End Butterfly Valve – Heavy Duty Industrial Flow Control Solution

The Flanged End Butterfly Valve is a robust, high-performance flow control valve designed for isolation and regulation of liquids and gases in industrial pipeline systems. Engineered for durability and operational efficiency, this valve is widely used in water treatment plants, chemical processing industries, HVAC systems, fire fighting pipelines, oil & gas transmission, power plants, and general industrial applications.

Unlike wafer type valves, flanged end butterfly valves come with integral flanges on both sides, ensuring secure bolted connections to pipeline flanges. This construction provides superior stability in high-pressure systems and larger diameter pipelines. It minimizes leakage risk, enhances structural strength, and simplifies maintenance.

At Krishna Industries, we supply premium quality flanged butterfly valves manufactured with precision machining and strict quality control. We position ourselves as a leading Supplier, Wholesaler, Exporter, Distributor and Trader from Ahmedabad, Gujarat, India, delivering reliable valve solutions across India and global markets.

Related Industrial Valve Products

We also deal in the following related valve categories to meet complete industrial pipeline requirements:

• Double Flanged Butterfly Valve
• Resilient Seated Butterfly Valve
• Gear Operated Butterfly Valve
• Cast Iron Butterfly Valve
• Wafer Type Butterfly Valve

These product variations are available in multiple pressure ratings, materials, actuation types, and international standards.

Technical Overview

Valve Type

Butterfly Valve – Double Flanged End Design

Available Sizes

DN 50 mm to DN 1200 mm (2” to 48”) or as per customer requirement

Pressure Ratings

• PN 10
• PN 16
• Class 150
• Class 300 (On request)

Body Materials

• Cast Iron (CI)
• Ductile Iron (DI)
• Carbon Steel (WCB)
• Stainless Steel (SS 304 / SS 316)

Disc Materials

• Nickel Plated DI
• SS 304 / SS 316
• Aluminum Bronze

Seat Materials

• EPDM
• NBR
• PTFE
• Viton

End Connection

Double Flanged – Drilled as per IS, ANSI, DIN, BS standards

Operation Type

• Manual Lever Operated
• Gear Operated
• Pneumatic Actuated
• Electric Actuated

Long Introduction – Understanding Flanged End Butterfly Valve in Detail

What is a Flanged End Butterfly Valve?

A flanged end butterfly valve is a quarter-turn rotational motion valve used to start, stop, or regulate fluid flow. The primary component is a circular disc mounted on a shaft. When the handle or actuator rotates the shaft 90 degrees, the disc either blocks or allows flow.

The flanged design incorporates full flanges on both ends of the valve body, allowing it to be bolted directly between two pipe flanges using bolts and nuts. This creates a rigid, vibration-resistant connection suitable for heavy industrial applications.

Why Choose Flanged Over Wafer Type?

While wafer type butterfly valves are compact and economical, flanged end valves provide:

• Higher structural stability
• Better alignment in large diameter pipelines
• Improved pressure handling capacity
• Easy removal without disturbing adjacent piping
• Reduced leakage risk

For critical industrial systems and high-pressure networks, flanged design is preferred.

Industrial Applications

Flanged butterfly valves are used in:

• Water supply and irrigation systems
• Effluent treatment plants (ETP)
• Sewage treatment plants (STP)
• Power generation facilities
• Oil & gas pipelines
• Chemical and petrochemical plants
• Fire protection lines
• Marine and shipbuilding industries

These valves handle water, steam, compressed air, chemicals, slurry, oil, and non-corrosive fluids.

Design Features

Heavy Duty Body Construction

The valve body is designed with reinforced ribs and thick wall sections to withstand pipeline stress and pressure variations.

Precision Machined Disc

The disc is dynamically balanced to ensure smooth operation and reduced torque requirements.

Resilient Seating

Soft seated options like EPDM and NBR ensure bubble-tight shutoff with minimal leakage.

Corrosion Resistance

Epoxy powder coating enhances resistance against corrosion and extends service life.

Low Maintenance Design

Simple construction allows easy disassembly and part replacement.

Advantages of Flanged End Butterfly Valve

• Compact design compared to gate valves
• Lightweight for large diameter sizes
• Quick quarter-turn operation
• Cost-effective compared to ball valves in large sizes
• Bidirectional flow capability
• Low pressure drop
• Long service life

Minimum Order Quantity (MOQ)

10 Pieces – MOQ

Minimum Order Quantity for Flanged End Butterfly Valve is 10 Units. Bulk quantity orders are welcome for project supply and industrial requirements.

Indian Buyers – 100% Payment Terms

For Indian buyers, we operate on 100% advance payment basis. Orders are processed immediately upon receipt of confirmed payment. GST invoice is issued as per Indian taxation standards.

Why Choose Krishna Industries?

Industry Positioning

Krishna Industries is a recognized Supplier, Wholesaler, Exporter, Distributor and Trader from Ahmedabad, Gujarat, India specializing in industrial valves and pipeline accessories.

Our Strengths

• Strong vendor network
• Competitive wholesale pricing
• Timely delivery across India
• Export documentation support
• Custom specification handling
• Quality assurance before dispatch

Export Capabilities

We supply valves to international markets including Africa, Middle East, Southeast Asia and other global regions. Export packing and documentation provided as per international trade norms.

10 Frequently Asked Questions (FAQ)

1. What is the difference between wafer and flanged butterfly valve?

Wafer valves are clamped between flanges, while flanged valves have integrated flanges for bolted connections offering higher stability.

2. What pressure rating is available?

Standard ratings include PN10, PN16 and ANSI Class 150. Higher ratings available on request.

3. Can it be used for chemical applications?

Yes, with appropriate body and seat material like SS 316 and PTFE.

4. Is the valve suitable for high temperature?

Temperature suitability depends on seat material. PTFE and Viton seats support higher temperatures.

5. What is the delivery time?

Delivery depends on size and quantity. Standard sizes available for fast dispatch.

6. Is third-party inspection available?

Yes, inspection can be arranged upon customer request.

7. Do you provide test certificates?

Hydrostatic and material test certificates available as required.

8. What coating is provided?

Epoxy powder coating for corrosion protection.

9. Can actuator be provided?

Yes, pneumatic and electric actuators are available.

10. Do you supply PAN India?

Yes, we supply across India and export internationally.

Conclusion

The Flanged End Butterfly Valve is a reliable, economical and efficient solution for industrial flow control systems. With durable construction, flexible material options and multiple operation modes, it meets diverse application requirements.

For bulk orders, project supply, or export requirements, contact Krishna Industries – Ahmedabad, Gujarat, India. We ensure quality products, competitive pricing and professional service support.
