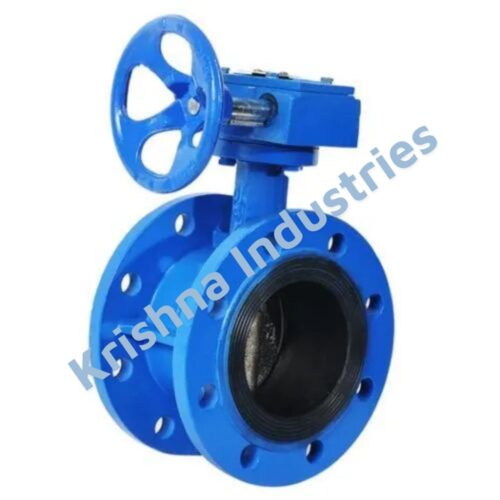

Gear Operated Butterfly Valve | CI DI WCB SS | DN200–DN1200 | Supplier India

Description

Gear Operated Butterfly Valve Supplier India | CI / DI / WCB / SS316 | DN200–DN1200 | ISO 5211 | KELOR

Supplier: Krishna Industries (KELOR) – Ahmedabad, Gujarat, India
Established: 2017 | GSTIN: 24AKLPP6499B1ZT | IEC: AKLPP6499B
MOQ: 10 Nos | Sizes: DN50–DN1200 | Pressure: PN10 / PN16 / PN25
Gearbox: Worm / Bevel | ISO 5211 actuator-ready mounting pad standard

Introduction – Gear Operated Butterfly Valve Supplier India

Krishna Industries (KELOR), based in Ahmedabad, Gujarat, India, is a trusted B2B supplier of Gear Operated Butterfly Valves sourced from verified Indian manufacturers. We supply Gear Operated Butterfly Valves in Cast Iron, Ductile Iron, WCB, SS304, and SS316 body — SS304, SS316, and Aluminium Bronze disc — EPDM, NBR, PTFE, and Viton seat — sizes DN50 to DN1200 — PN10, PN16, and PN25 — wafer, lug, and double flanged body — worm gearbox standard, bevel gearbox for large bore high-torque service — ISO 5211 actuator-ready mounting pad — IP65 gearbox enclosure standard.

A Gear Operated Butterfly Valve uses a worm gear mechanism between the handwheel and the valve disc — the operator turns the handwheel which drives the worm gear, which rotates the disc in a controlled, mechanical-advantage-multiplied motion. This gearbox reduces the operating torque the operator must apply by a factor of 15:1 to 60:1 depending on gearbox ratio — making large bore valves that would be impossible to operate by hand lever completely manageable by a single operator.

Beyond torque reduction, gear operation provides the second critical advantage in pipeline systems: water hammer prevention. A lever-operated butterfly valve can be slammed shut in under one second — creating a pressure surge (water hammer) that can burst pipes, damage fittings, and destroy pump seals. A gear-operated valve closes in 30 to 90 seconds — the slow controlled disc rotation prevents pressure surges and protects the entire pipeline system. This is why every municipal water supply project, large HVAC system, and major EPC pipeline specifies gear operation from DN200 and above.

When to Specify Gear Operation — Lever vs Gearbox Selection Guide

Additional factors requiring gearbox regardless of size: High differential pressure across disc, high-velocity flow, frequent daily operation (more than 5 cycles per day), outdoor exposed installation, underground valve pit, future actuator upgrade planned.

Worm Gearbox vs Bevel Gearbox

Body Type Guide — Wafer vs Lug vs Double Flanged

ISO 5211 Mounting Pad — Actuator-Ready Design

Every gear-operated butterfly valve is supplied with an ISO 5211 standard mounting pad on the gearbox — the international standard interface for mounting pneumatic, electric, or hydraulic actuators without disassembling the valve. If your project starts manual and later requires automation (SCADA, remote operation, safety shutdown), an actuator mounts directly onto the existing gearbox — no new valve purchase required. Specify ISO 5211 F-size (F07, F10, F14, F16) matching your valve size and actuator torque requirements.

Gearbox IP Rating

Material Configuration Guide

Technical Specifications

Water Hammer — Why Gear Operation Protects Your Pipeline

Water hammer occurs when a valve closes rapidly — a lever butterfly valve can slam shut in under one second, creating pressure spikes 5 to 10 times normal operating pressure — enough to burst pipe joints, crack valve bodies, destroy pump mechanical seals, and damage instrumentation. A gear-operated butterfly valve closes in 30 to 90 seconds — the gradual disc rotation allows kinetic energy to dissipate slowly, preventing the pressure wave entirely. One gear-operated valve protecting a pump station header can prevent lakhs of rupees in pump and pipeline damage every year.

All Variants — Full Keyword Coverage

Gear operated butterfly valve CI cast iron PN10 PN16 DN200 DN300 supplier India. Gear operated butterfly valve DI ductile iron double flanged supplier Ahmedabad. Gear operated butterfly valve WCB carbon steel Class 150 supplier India. Gear operated butterfly valve SS316 chemical plant supplier Ahmedabad Gujarat. Worm gear butterfly valve large bore DN400 DN600 DN800 supplier India. Gear operated butterfly valve municipal water supply supplier India. Gear operated butterfly valve HVAC chilled water supplier Ahmedabad. Gear operated butterfly valve ISO 5211 actuator ready supplier India. Double flanged gear operated butterfly valve DN600 DN800 DN1000 supplier India. Gear operated butterfly valve IP65 IP67 outdoor underground supplier India. Bevel gear butterfly valve large bore high torque supplier India. Gear operated butterfly valve EPC bulk supply PAN India.

Applications in Indian Industries

• Municipal water supply — DN300 to DN1200 CI / DI double flanged — transmission mains, pump stations, water towers
• Water treatment plants (WTP) — large bore raw water intake, filter inlet/outlet, clear water reservoir
• HVAC and district cooling — chilled water and condenser water headers DN200 to DN600
• Fire fighting systems — large bore wet riser headers, pump discharge headers
• Irrigation and agricultural projects — canal offtakes, distribution headers
• Power plants — cooling water intake and discharge, condenser water isolation
• Industrial process plants — WCB / SS316 for chemical, oil, and gas large bore isolation
• Sewage treatment plants — raw sewage inlet, effluent outlet large bore isolation
• Shipyard and port infrastructure — Al-Bronze disc for seawater service

Related Products from Krishna Industries

• PN10 Butterfly Valve (Lever) — small-medium bore lever operated wafer type
• PN16 Butterfly Valve (Lever) — medium bore PN16 lever operated
• Lug Type Butterfly Valve — end-of-line lever operated
• CI Gate Valve (IS 14846) — full bore isolation alternative for large bore
• Dual Plate Check Valve — non-return on pump discharge adjacent to butterfly valve

Frequently Asked Questions

1. What is a gear operated butterfly valve?

A butterfly valve fitted with a worm or bevel gearbox — the handwheel drives the gearbox which rotates the disc in controlled, mechanically-reduced motion. Provides 15:1 to 60:1 mechanical advantage making large bore valves easy to operate, and prevents water hammer through slow controlled closure.

2. From what size should I specify gear operation?

DN350 and above — always gearbox. DN200 to DN300 — gearbox for PN16 or frequent operation. DN150 and below — lever is standard. DN700+ — gearbox mandatory, lever physically impossible safely.

3. What is water hammer and how does gear operation prevent it?

Water hammer is a pressure surge from rapid valve closure — lever butterfly slams shut in under one second, creating pressure spikes 5 to 10 times normal. Gear operation closes in 30 to 90 seconds — gradual disc movement prevents the pressure wave entirely, protecting pumps, pipes, and fittings.

4. What is ISO 5211 mounting pad?

Standard interface on gearbox top for mounting pneumatic, electric, or hydraulic actuators without removing the valve. If your project starts manual and later needs automation, actuator mounts directly onto existing gearbox — no new valve purchase needed.

5. What body type for DN600 and above?

Double flanged — two integral flanges for the strongest, most reliable connection in large bore and buried service. Wafer body is impractical above DN400 due to bolt alignment difficulty and insufficient flange contact area.

6. What gearbox IP rating for underground valve pit?

IP67 for underground and flood-prone pits. IP65 is standard supply for outdoor above-ground. IP68 for permanently submerged. Confirm installation environment in your RFQ.

7. Worm or bevel gearbox?

Worm gearbox is standard for DN50 to DN600 — self-locking, economical, reliable. Bevel gearbox for DN600+ with high operating frequency where fewer turns and faster operation are needed.

8. Can gear operated butterfly valve be automated later?

Yes — ISO 5211 mounting pad allows pneumatic or electric actuator to be added later without removing the valve. Specify F-size in your RFQ to confirm actuator compatibility.

9. What disc for seawater service?

Aluminium Bronze disc with Ductile Iron body and EPDM seat — standard for seawater, brackish water, and coastal service. SS316 disc with SS316 body for offshore or aggressive marine chemical service.

10. What is the MOQ?

MOQ is 10 Nos. Large bore project BOM supply with project-rate pricing for EPC contractors.

11. What standards?

EN 593 / API 609 (design), EN 558 (face-to-face), EN 1092-1 / ANSI B16.5 (flanges), EN 12266 / API 598 (testing), IS 13095 (Indian standard).

12. Can I order gear and lever operated together?

Yes — gear operated and lever operated butterfly valves in all sizes consolidated in one order — single GST invoice, single dispatch from Ahmedabad.

Conclusion

The Gear Operated Butterfly Valve supplied by Krishna Industries (KELOR) covers the complete large bore range — CI, DI, WCB, SS304, SS316 body — worm and bevel gearbox — wafer, lug, double flanged — DN50 to DN1200 — PN10, PN16, PN25 — ISO 5211 actuator-ready — IP65 standard. Water hammer prevention through controlled slow-close operation. Sourced from verified Indian manufacturers with MTC, EN 12266 / API 598 test certificates, and full GST documentation. Fast PAN India dispatch from Ahmedabad.

For municipal water engineers, HVAC contractors, EPC purchase managers, and large bore pipeline buyers — contact Krishna Industries (KELOR), your trusted Gear Operated Butterfly Valve supplier in Ahmedabad, Gujarat, India. WhatsApp your size range, body material, pressure class, and quantity for bulk pricing within 2 hours.
