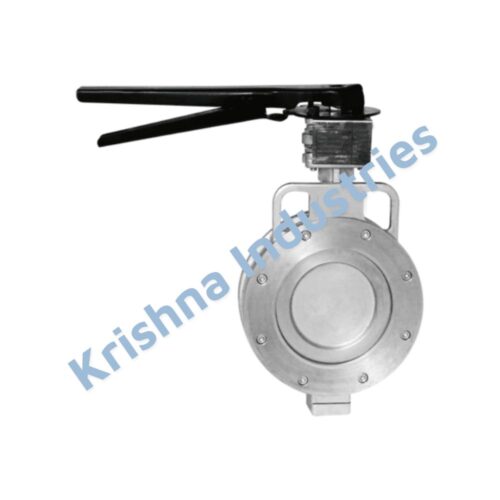

Spherical Disc Butterfly Valve Supplier India | Double Eccentric High Performance | API 609 Cat B | KELOR

Supplier: Krishna Industries (KELOR) – Ahmedabad, Gujarat, India
Established: 2017 | GSTIN: 24AKLPP6499B1ZT | IEC: AKLPP6499B
MOQ: 10 Nos | Sizes: DN50–DN1200 | Standard: API 609 Category B / EN 593
Design: Double Eccentric — Spherical Disc — Zero Seat Friction on Open/Close

Introduction – Spherical Disc Butterfly Valve Supplier India

Krishna Industries (KELOR), based in Ahmedabad, Gujarat, India, is a trusted B2B supplier of Spherical Disc Butterfly Valves sourced from verified Indian manufacturers. We supply Spherical Disc Butterfly Valves in Cast Iron, Ductile Iron, WCB, SS304, SS316 body — SS316, Duplex Steel, and Nickel Aluminium Bronze disc — EPDM, NBR, PTFE, Viton, and metal seat — wafer, lug, and double flanged body — sizes DN50 to DN1200 — PN10, PN16, PN25, Class 150, and Class 300 — lever, gear, pneumatic, and electric actuated — conforming to API 609 Category B and EN 593.

The Spherical Disc Butterfly Valve is a high performance butterfly valve that solves the fundamental limitation of standard concentric butterfly valves: seat wear. Understanding why requires understanding the geometry of how a butterfly disc closes — and why the spherical eccentric design eliminates the problem entirely.

Why Standard Concentric Butterfly Valves Wear Out — The Rubbing Problem

In a standard concentric butterfly valve (your PN10 / PN16 lever type), the disc shaft sits exactly on the pipeline centreline and exactly on the disc centreline. When the disc rotates to close, the outer edge of the disc slides across the elastomer seat for the entire 90-degree stroke — the disc rubs against the seat continuously from fully open to fully closed and back again. Every single open/close cycle wears a small amount of seat material.

In low-frequency service (opening once a week), this wear is negligible and the seat lasts years. In high-frequency service (multiple cycles per day — automated process control, pump control, frequent isolation), the seat is worn out in months. In high-velocity flow, the disc vibrates against the seat in partially open position, accelerating wear further. And in high-pressure service, the disc is forced hard against the seat as it rubs — multiplying wear rate.

This is why engineers on high-frequency, high-pressure, or high-velocity services specify a different butterfly valve — one where the disc does not rub the seat during operation.

How Spherical Disc / Double Eccentric Design Solves This

The Spherical Disc Butterfly Valve uses two geometric offsets — hence “double eccentric” — that completely change how the disc interacts with the seat:

• First offset: The shaft centreline is displaced behind the disc face (not through it) — this creates a cam action as the disc rotates, so the disc lifts away from the seat immediately when opening begins, rather than rubbing across it
• Second offset: The shaft centreline is also displaced to one side of the pipe centreline — this means the disc generates a conical seating action when closing, pressing uniformly around the full seat circumference at the moment of closure only
• Spherical disc profile: The disc face is machined to a spherical or conical geometry that matches the seat geometry precisely — uniform contact stress around the full seat perimeter when closed, and clean geometric separation when opening

The result: the disc only contacts the seat at the final moment of closure and the first moment of opening — it does not rub the seat during rotation. Seat life in high-frequency service extends from months to years. Operating torque drops by 30 to 50% compared to an equivalent concentric butterfly valve in the same size and pressure. Sealing quality improves because the spherical geometry provides uniform contact pressure around the full seat circumference rather than the variable pressure of a flat disc against a round seat.

Concentric vs Double Eccentric vs Triple Offset — Complete Comparison

Selection rule: If your butterfly valve opens and closes more than once per day, or is in automated / actuated service, or handles anything other than clean water at ambient temperature — the Spherical Disc / Double Eccentric design is the correct specification. The cost premium over standard concentric is recovered in seat replacement savings within the first year of operation in high-frequency service.

Seat Material Selection Guide

Metal seat spherical disc butterfly valve is the configuration that opens the biggest gap between this valve and standard concentric butterfly valves — a concentric butterfly valve physically cannot achieve tight shut-off with a metal seat due to its rubbing geometry. The spherical eccentric design’s cam-action closing enables consistent, repeatable metal-to-metal sealing that a flat disc against a metal seat cannot deliver.

Technical Specifications

All Variants — Full Keyword Coverage

Spherical disc butterfly valve CI cast iron PN10 PN16 supplier India. Spherical disc butterfly valve DI ductile iron double flanged supplier Ahmedabad. Double eccentric butterfly valve WCB SS316 supplier India. High performance butterfly valve PTFE seat chemical plant supplier Ahmedabad Gujarat. Spherical disc butterfly valve metal seat high temperature supplier India. API 609 Category B butterfly valve supplier India. Double eccentric butterfly valve PN16 Class 150 Class 300 supplier Ahmedabad. Low torque butterfly valve automated pneumatic electric actuated supplier India. Spherical disc butterfly valve fire safe API 607 supplier India. High performance butterfly valve large bore DN400 DN600 DN800 supplier India. Double eccentric butterfly valve Viton seat oil gas supplier Ahmedabad. Spherical disc butterfly valve EPC project bulk supply India.

Applications — Where Spherical Disc Outperforms Standard Butterfly

• Automated process control systems — pneumatic or electric actuated, multiple cycles per day — spherical disc seat life 5–10x longer than concentric in this service
• Pump control butterfly valves — opening and closing on every pump start/stop cycle — high frequency demands spherical disc for acceptable seat life
• Chemical plant isolation — WCB / SS316 with PTFE or Viton seat — chemical resistance combined with low torque for actuator reliability
• HVAC large bore headers — DN300 to DN600 gear operated — low torque is critical for large bore gear operation; spherical disc reduces required gearbox size
• Water treatment high-pressure service — PN16 / PN25 filtration, membrane plant isolation — where standard PN10 concentric is under-specified
• Steam and hot fluid service — PTFE or metal seat — where EPDM seat temperature limit is exceeded
• Marine and offshore — Nickel Aluminium Bronze disc with DI or SS316 body — seawater and marine atmosphere resistance
• Power plant cooling water — large bore double flanged with metal seat — high cycle count and high temperature intermittent service
• Oil and gas process — WCB / SS316 fire safe API 607, Class 150 / 300 — where API 609 Category B is specified in piping material class
• GEM tenders and government projects — when tender specification calls for “high performance butterfly valve” or “double eccentric butterfly valve” — this is the product

EPC and Project Buyers — Bulk Supply

• Complete butterfly valve range — concentric (PN10/PN16) and spherical disc (high performance) in single consolidated order
• All body materials — CI, DI, WCB, SS316 — mixed in one order
• All seat materials — EPDM, PTFE, Viton, metal — confirmed with application before supply
• MTC for body material — CI per IS 210, WCB per ASTM A216, SS316 per ASTM A351 CF8M
• EN 12266 / API 598 hydrostatic body and seat test certificates
• API 607 fire safe certification on request
• ISO 5211 actuator interface — specify F-size with RFQ
• GST invoices — GSTIN: 24AKLPP6499B1ZT
• Fast dispatch from Ahmedabad — 5 to 10 working days standard configurations

PAN India Supply Coverage

Gujarat — Ahmedabad, Surat, Vadodara, Rajkot, Bharuch, Ankleshwar, Vapi, Dahej, Mundra
Maharashtra — Mumbai, Pune, Navi Mumbai, Nashik, Aurangabad, Nagpur
Rajasthan — Jaipur, Jodhpur, Udaipur, Kota, Bhilwara
Delhi NCR — Delhi, Noida, Gurgaon, Faridabad, Ghaziabad
Tamil Nadu — Chennai, Coimbatore, Madurai, Tirupur, Salem
Karnataka — Bangalore, Hubli, Mysore, Belgaum, Mangalore
Telangana and Andhra Pradesh — Hyderabad, Vizag, Vijayawada, Kakinada
Madhya Pradesh — Indore, Bhopal, Jabalpur, Pithampur
Punjab and Haryana — Ludhiana, Amritsar, Chandigarh, Panipat
West Bengal — Kolkata, Durgapur, Asansol, Haldia

Export FOB Mundra / JNPT. IEC: AKLPP6499B.
