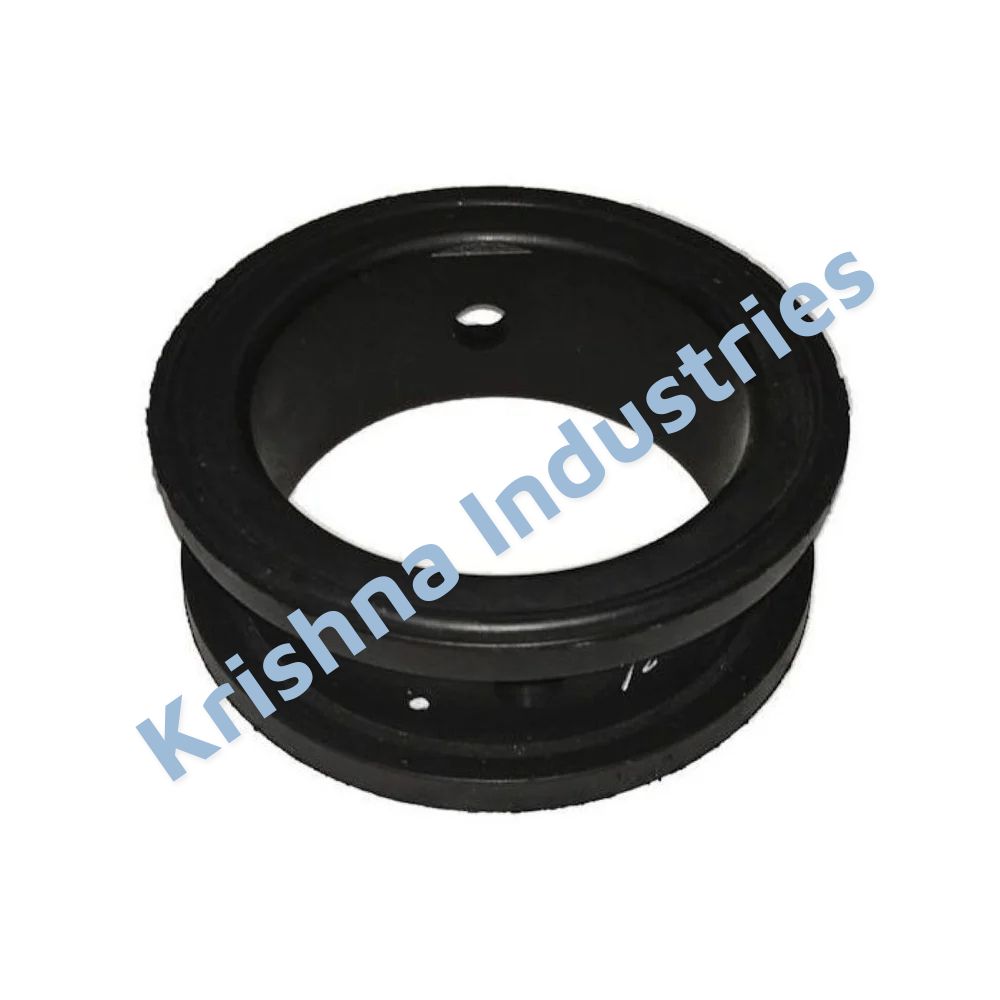

Butterfly Valve Sleeve

Description

Butterfly Valve Sleeve – High Performance Sealing Solution for Industrial Applications

In modern piping systems, sealing integrity is not optional — it is mission-critical. The Butterfly Valve Sleeve plays a central role in ensuring zero leakage, chemical resistance, and long service life in butterfly valve assemblies. Whether deployed in water treatment plants, chemical processing lines, pharmaceutical production, food industries, or slurry handling systems, the sleeve acts as the primary resilient sealing element between the valve body and disc.

At Krishna Industries, we specialize in manufacturing and supplying precision-engineered Butterfly Valve Sleeves designed for durability, dimensional accuracy, and long-term operational reliability. Our sleeves are compatible with Rubber Lined Butterfly Valve, PTFE Lined Butterfly Valve, Wafer Type Butterfly Valve, Lug Type Butterfly Valve, and Industrial Butterfly Valve assemblies across multiple pressure classes.

With deep industry experience and strong distribution capability, Krishna Industries is recognized as a trusted Supplier, Wholesaler, Exporter, Distributor and Trader of Butterfly Valve Sleeves from Ahmedabad, Gujarat, India. We focus primarily on Indian industrial buyers while also serving export requirements with quality compliance and structured documentation.

Minimum Order Quantity (MOQ)

• MOQ: 10 Pieces
• Flexible bulk pricing available for Indian industrial buyers

What is a Butterfly Valve Sleeve?

A Butterfly Valve Sleeve is a molded elastomer or polymer liner installed inside the valve body. It provides:

• Primary sealing against the disc
• Body protection from corrosive media
• Bidirectional sealing capability
• Shock and vibration absorption
• Reduced torque operation

Unlike metal-to-metal seated valves, butterfly valve sleeves create resilient seating that ensures bubble-tight shutoff even under fluctuating pressure conditions.

Key Features of Krishna Industries Butterfly Valve Sleeve

1. High Chemical Resistance

Available in EPDM, NBR, PTFE, Viton, and Neoprene materials suitable for water, acids, mild chemicals, oil, and slurry.

2. Precision Molding Technology

Uniform thickness and controlled tolerances ensure proper disc alignment and smooth operation.

3. Temperature Resistance

Operating temperature range varies by material selection:

• EPDM: -20°C to 120°C
• NBR: -10°C to 100°C
• Viton: Up to 180°C
• PTFE Lined: Up to 200°C

4. Long Service Life

Optimized rubber formulation enhances abrasion resistance and fatigue strength.

5. Easy Replacement

Designed for convenient maintenance and replacement without replacing entire valve body.

Available Material Options

EPDM Sleeve

Best suited for water, steam, and mild chemicals. Commonly used in municipal water systems.

NBR Sleeve

Ideal for oil, hydrocarbons, and fuel handling applications.

Viton Sleeve

Preferred for high temperature and aggressive chemical processing.

PTFE Sleeve

Used in highly corrosive environments including acid handling and pharma industries.

Industries We Serve in India

• Water Treatment Plants
• Chemical Manufacturing
• Pharmaceutical Industry
• Food & Beverage Processing
• Cement Industry
• Power Plants
• Pulp & Paper Industry
• Textile Processing
• Oil & Gas (Non-critical Applications)
• HVAC Systems

Technical Specifications

Size Range

DN 40 to DN 600 (Custom sizes available)

Pressure Rating

PN 10 / PN 16 / ANSI 150

Testing

• Hydrostatic Pressure Testing
• Leakage Testing
• Dimensional Inspection

End Compatibility

• Wafer Type
• Lug Type
• Flanged Type

Why Choose Krishna Industries?

1. Strategic Location

Based in Ahmedabad, Gujarat — a major industrial hub with strong logistics connectivity across India.

2. Indian Buyer Focused Supply

We understand Indian project timelines, payment structures, GST compliance, and documentation requirements.

3. Bulk Supply Capability

We cater to OEMs, EPC contractors, project suppliers, and maintenance contractors.

4. Competitive Pricing

Direct sourcing and structured procurement model ensures cost-effective supply.

5. Export Readiness

Complete export documentation including Proforma Invoice, Commercial Invoice, Packing List, and HS Code classification.

Installation Guidelines

• Clean valve body before sleeve insertion
• Ensure disc alignment before tightening bolts
• Avoid over-tightening which may damage sleeve edges
• Conduct pressure testing after installation

Maintenance Recommendations

• Periodic inspection for cracks or deformation
• Avoid exposure beyond recommended temperature
• Replace sleeve if sealing efficiency reduces

Butterfly Valve Sleeve vs Metal Seat – Comparison

Sealing Efficiency

Resilient sleeves provide better low-pressure sealing compared to metal seat.

Cost

Lower cost maintenance due to replaceable sleeve design.

Corrosion Resistance

Superior when using PTFE or chemical-resistant elastomers.

Quality Assurance

Every Butterfly Valve Sleeve supplied by Krishna Industries undergoes strict inspection for:

• Material hardness testing
• Tensile strength verification
• Dimensional accuracy check
• Visual surface inspection

Logistics & Delivery Across India

We supply across:

• Mumbai
• Delhi
• Chennai
• Bangalore
• Hyderabad
• Kolkata
• Pune
• Surat
• Vadodara
• Coimbatore

Frequently Asked Questions (FAQ)

1. What is the MOQ for Butterfly Valve Sleeve?

Minimum order quantity is 10 pieces.

2. Can sleeve be replaced without changing valve body?

Yes, sleeves are designed for easy replacement.

3. Which material is best for water application?

EPDM is most commonly used for water applications.

4. Do you supply PTFE lined sleeves?

Yes, we supply PTFE sleeves for chemical resistance.

5. What pressure rating do you offer?

PN10, PN16, and ANSI 150.

6. Do you supply PAN India?

Yes, we supply across India.

7. Can you supply in bulk for projects?

Yes, bulk project supply is available.

8. Are custom sizes available?

Yes, custom sizes can be manufactured as per drawing.

9. What is delivery timeline?

Standard delivery 5–10 working days depending on quantity.

10. Are you manufacturer or trader?

Krishna Industries operates as Supplier, Wholesaler, Exporter, Distributor and Trader from Ahmedabad, Gujarat, India.

Conclusion

The Butterfly Valve Sleeve is a vital sealing component that directly impacts valve performance, operational safety, and system efficiency. Choosing the right sleeve material and reliable supplier ensures long-term operational stability. Krishna Industries, based in Ahmedabad, Gujarat, stands as a trusted name in the Indian industrial market, delivering quality, reliability, and cost-effective solutions.

For bulk orders, project supply, dealership inquiries, or technical consultation, connect with Krishna Industries today.
