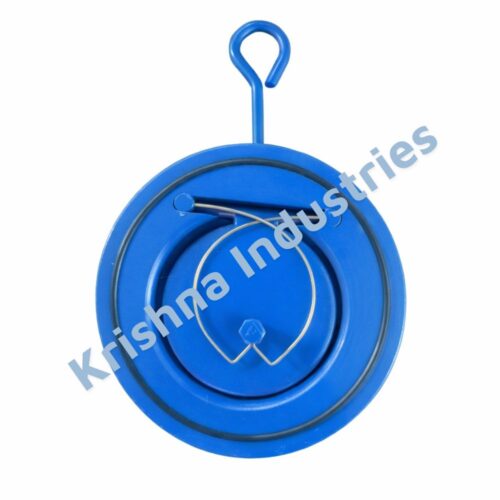

Spring Loaded Wafer Check Valve

Spring Loaded Wafer Check Valves are compact, high-performance non-return valves designed to protect pipelines and equipment by preventing reverse flow. Engineered for reliability and longevity, these valves combine a wafer-style body with an internal spring mechanism, delivering fast response, minimal pressure drop, and stable sealing—even in compact piping systems.

1. Robust Construction & Materials
Each valve features a wafer-thin body profile that fits snugly between standard flanges, reducing weight and installation space. Typical body materials include ductile iron, carbon steel (WCB), and stainless steels (CF8, CF8M), offering excellent corrosion resistance and mechanical strength. The internal spring and disc assembly is precision-machined from stainless steel to ensure consistent closing force and durability. Seats are available in resilient elastomers such as NBR, EPDM, and PTFE, chosen to match specific media compatibility and temperature requirements.

2. Spring-Loaded Design for Positive Closure
Unlike swing check valves, the spring-loaded wafer design uses a calibrated spring to apply immediate closing force on the disc whenever forward flow ceases. This rapid response minimizes water hammer and pressure surges, safeguarding pumps and sensitive equipment. The spring tension can be tailored to different cracking pressures (from as low as 0.1 bar up to several bars), ensuring reliable operation across a wide range of flow conditions.

3. Minimal Pressure Drop & Space-Saving Wafer Style
The streamlined flow path and wafer-thin body keep pressure losses exceptionally low—typically less than 0.2 bar at rated flow—helping maintain system efficiency. The compact wafer design sits between flanges with no protruding parts, making it ideal for installations where space is at a premium and reducing the need for additional support structures.

4. Versatile Applications
Spring Loaded Wafer Check Valves excel in:

• Pumping Systems: Protecting centrifugal and positive displacement pumps from backflow-induced damage.

• HVAC & Chilled Water Circuits: Ensuring unidirectional flow in chillers, condensers, and rooftop units.

• Water & Wastewater Treatment: Preventing contamination and cross-flow between treatment stages.

• Chemical & Petrochemical: Handling corrosive and abrasive fluids with appropriate seat and body material selections.

• Oil & Gas: Used in offshore and onshore service for gas, oil, and multiphase flow lines.

5. Key Advantages

• Fast Shut‑Off: Spring mechanism closes disc immediately at flow reversal, reducing surge and noise.

• Low Maintenance: Simple internal construction with few moving parts; disc and spring can be serviced in-line by removing the body flange.

• High Reliability: Precision-engineered components and rigorous testing guarantee leak-tight performance and long service life.

• Customizable: Available in sizes from 1⁄2″ to 24″ (DN 15–600) and pressure classes from PN 6 up to PN 40 (150 lb to 600 lb), with options for high-temperature spring alloys and specialty elastomer seats.

6. Quality Assurance & Standards
Manufactured in compliance with API 594 and EN 12334, each valve undergoes shell and seat testing as per API 598 to ensure zero leakage. Material traceability, dimension inspection, and pressure testing certificates are provided with every shipment, ensuring conformity to ISO 9001 quality management systems.

7. Installation & Maintenance Tips

• Orientation: Can be installed in horizontal or vertical pipelines; spring-loaded models close against gravity, so vertical downward flow is not recommended.

• Support: Ensure proper flange alignment and use gasket material compatible with the media and temperature.

• Inspection: Periodic visual checks and leak tests every six months; internal parts can be replaced by loosening flange bolts without removing adjacent piping.

Spring Loaded Wafer Check Valves combine compact design, rapid response, and durable materials to deliver dependable non-return service across industrial, municipal, and commercial applications. Whether you’re safeguarding pumps, optimizing flow efficiency, or protecting critical equipment, these valves offer a low-maintenance, high-performance solution tailored to your system’s exacting needs.
