Description

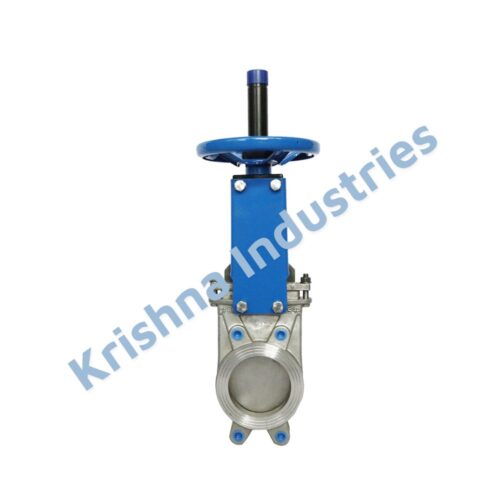

Manual Knife Gate Valve Supplier India | CI / DI / WCB / SS316 | Handwheel | MSS SP-81 | KELOR

Supplier: Krishna Industries (KELOR) – Ahmedabad, Gujarat, India
Established: 2017 | GSTIN: 24AKLPP6499B1ZT | IEC: AKLPP6499B
MOQ: 10 Nos | Sizes: 50mm–600mm | Standard: MSS SP-81 / ISO 5996
Operation: Manual Handwheel | Media: Slurry, Pulp, Wastewater, Fibrous, Viscous

Introduction – Manual Knife Gate Valve Supplier India

Krishna Industries (KELOR), based in Ahmedabad, Gujarat, India, is a trusted B2B supplier of Manual Knife Gate Valves (handwheel operated) sourced from verified Indian manufacturers. We supply Manual Knife Gate Valves in Cast Iron, Ductile Iron, WCB, SS304, and SS316 body — sharp-edged SS304 / SS316 gate — EPDM, NBR, and Viton seats — sizes 50mm to 600mm — PN10 and PN16 — wafer type and lug type — conforming to MSS SP-81 and ISO 5996.

A Manual Knife Gate Valve is operated by a handwheel connected directly to a rising stem — no electricity, no compressed air, no control panel, and no power supply required. The operator turns the handwheel to raise the sharp-edged gate clear of the flow path (open) or lower it through the slurry until it seats (closed). This simplicity is the defining advantage of manual operation — reliable in power outages, independent of instrumentation systems, easy to maintain in the field, and significantly lower in cost than pneumatic or electric actuated valve packages.

The knife gate design cuts cleanly through slurry, pulp, fibrous media, and suspended solids on closing — preventing the jamming and seat damage that destroys standard gate valves in these services. Manual handwheel operation is the most common configuration for knife gate valves in Indian STP, ETP, paper mill, sugar mill, cement, mining, and industrial wastewater applications.

Manual vs Actuated Knife Gate Valve — When to Specify Which

The most common selection question for knife gate valve buyers in Indian process and utility plants:

Rule for Indian plant buyers: If the valve operates fewer than 5 times per day and does not need remote or automated operation — manual handwheel is the correct and most economical choice. For valves in automated loops, frequent cycling service, or safety shutdown duty — specify pneumatic or electric actuated. Krishna Industries supplies all three operation types — confirm your requirement before ordering.

Body Material Guide — CI vs DI vs WCB vs SS

For most Indian STP and ETP projects: Cast Iron body with EPDM seat is the standard and most cost-effective choice. Ductile Iron for mining and abrasive slurry where CI body may crack under impact. WCB for industrial chemical plant slurry. SS316 for aggressive chemical effluent and pharmaceutical applications.

Handwheel Sizing — When Gear Operation is Required

A question asked by every plant maintenance team and procurement manager ordering knife gate valves — when is a plain handwheel sufficient and when must gear operation be specified?

Important: Specifying a plain handwheel on a 400mm or 500mm knife gate valve against full line pressure is a common mistake in Indian projects — the operating torque is dangerously high and the valve will be very difficult or impossible to operate safely. Always specify gearbox for 350mm and above. Krishna Industries confirms the correct operation type for your size and pressure when you place an RFQ.

Bi-Directional vs Uni-Directional Sealing

Most Indian STP, ETP, and industrial wastewater knife gate valves are uni-directional — flow direction is fixed and known. Specify bi-directional sealing for pump bypass lines or where flow reversal is possible. Always confirm flow direction when ordering — specifying the wrong sealing direction results in seat leakage.

Technical Specifications

All Variants — Full Keyword Coverage

Manual knife gate valve CI cast iron wafer type PN16 slurry supplier India. Manual knife gate valve DI ductile iron handwheel supplier Ahmedabad. Handwheel knife gate valve WCB carbon steel supplier India. Manual knife gate valve SS304 SS316 supplier Ahmedabad Gujarat. Knife gate valve manual operation no actuator supplier India. Knife edge gate valve handwheel 50mm to 600mm PN10 PN16 India. Manual knife gate valve STP ETP wastewater supplier India. Knife gate valve handwheel paper mill sugar mill supplier India. Manual knife gate valve mining cement slurry supplier Ahmedabad. Knife gate valve gearbox operated large bore supplier India. Knife gate valve MSS SP-81 manual handwheel supplier India. Manual knife gate valve EPDM NBR Viton seat supplier Ahmedabad. Knife gate valve wafer lug type manual supplier Gujarat India.

Applications — Where Manual Knife Gate Valves Are Installed

• Sewage treatment plants (STP) — raw sewage channels, sludge thickener feed, digester inlet and outlet — manual preferred for infrequent operation
• Effluent treatment plants (ETP) — raw effluent isolation, clarifier feed, sludge withdrawal — CI body EPDM seat standard
• Paper and pulp mills — wood pulp chest outlets, white water isolation, broke pulp lines — SS316 for corrosion resistance
• Sugar mills — juice, syrup, and molasses isolation — EPDM and NBR seat depending on temperature
• Cement plants — cement slurry, fly ash conveying, wet process lines — hardened gate for abrasive media
• Mining and mineral processing — ore slurry, tailings pond, concentrate lines — DI body for impact resistance
• Power plants — fly ash sluice lines, bottom ash handling, ash slurry isolation
• Fertiliser plants — slurry and viscous chemical transfer lines
• Steel plants — scale pit water, cooling water with suspended solids
• Municipal wastewater pump stations — wet well isolation, pump suction and discharge — manual for simple reliable operation

MRO and Maintenance Teams — Why Manual Is Preferred

Plant maintenance engineers and MRO procurement managers in Indian process plants consistently prefer manual knife gate valves for the following reasons:

• No power dependency — continues to operate during power failures, air supply shutdowns, and instrument system faults
• Lower procurement cost — no actuator, solenoid, positioner, or limit switch to purchase
• Simpler spare parts — only seat and packing require replacement — no actuator overhaul
• Field maintainable — any plant maintenance technician can service — no specialist required
• No control system integration needed — suitable for plants without DCS or PLC infrastructure
• Longer valve life — fewer components means fewer failure points

EPC and Project Buyers — Bulk Supply

• Complete BOM supply — all sizes, all body materials, all seat options in single consolidated order
• CI, DI, WCB, SS304, SS316 body available together — single GST invoice
• Material Test Certificates (MTC) for body and gate material
• Hydrostatic and seat leakage test certificates per MSS SP-81
• GST invoices — GSTIN: 24AKLPP6499B1ZT
• Fast dispatch from Ahmedabad — 3 to 7 working days standard configurations
• Gearbox operated versions available for 350mm and above on same order

PAN India Supply Coverage

Gujarat — Ahmedabad, Surat, Vadodara, Rajkot, Bharuch, Ankleshwar, Vapi, Dahej
Maharashtra — Mumbai, Pune, Navi Mumbai, Nashik, Aurangabad, Nagpur
Rajasthan — Jaipur, Jodhpur, Udaipur, Kota, Bhilwara
Delhi NCR — Delhi, Noida, Gurgaon, Faridabad, Ghaziabad
Tamil Nadu — Chennai, Coimbatore, Madurai, Tirupur, Salem
Karnataka — Bangalore, Hubli, Mysore, Belgaum, Mangalore
Telangana and Andhra Pradesh — Hyderabad, Vizag, Vijayawada, Kakinada
Madhya Pradesh — Indore, Bhopal, Jabalpur, Pithampur
Punjab and Haryana — Ludhiana, Amritsar, Chandigarh, Panipat
West Bengal — Kolkata, Durgapur, Asansol, Haldia
Odisha, Jharkhand, Chhattisgarh — all industrial and mining zones

Export FOB Mundra / JNPT. IEC registered — IEC: AKLPP6499B.

Related Products from Krishna Industries

• WCB Knife Gate Valve — pneumatic and electric actuated versions — WCB / SS304 / SS316
• Dual Plate Check Valve — non-return valve for slurry pump discharge
• PN10 / PN16 Butterfly Valve — isolation for large bore low pressure lines
• CI / DI Gate Valve (IS 14846) — clean water isolation in same plant
• Y Strainer Valve — protection on clean service lines adjacent to slurry systems

Frequently Asked Questions

1. What is a manual knife gate valve?

A manual knife gate valve is a knife gate valve operated by a handwheel connected to a rising stem — no electricity or compressed air required. The operator turns the handwheel to raise the sharp-edged gate (open) or lower it through slurry until seated (closed). Designed for slurry, pulp, wastewater, and fibrous media where standard gate valves jam and fail. MSS SP-81 / ISO 5996 standard.

2. When should I choose manual over pneumatic actuated knife gate valve?

Choose manual handwheel when the valve operates fewer than 5 times per day, does not need remote or automated control, is located in a remote or rural plant without reliable air or electrical supply, or when budget is the primary constraint. Choose pneumatic actuated for automated process loops, frequent cycling, safety shutdown duty, or SCADA-integrated plants.

3. Which body material for STP and ETP?

Cast Iron body with EPDM seat is the standard and most economical choice for sewage treatment and effluent treatment plant service in India. DI body for heavy-duty mining and abrasive slurry where CI may crack.

4. At what size does a knife gate valve need a gearbox instead of plain handwheel?

350mm and above — gearbox is recommended to reduce operating torque to a safe and practical level for a single operator. Plain handwheel on large bore knife gate valves against full line pressure is extremely difficult to operate and potentially unsafe. Krishna Industries confirms correct operation type when you place your RFQ.

5. What is bi-directional sealing and when do I need it?

Bi-directional sealing means the seat seals effectively from either side — regardless of which direction fluid pressure acts. Required for pump bypass lines and reversible flow systems. Standard uni-directional sealing is sufficient for most fixed-direction slurry lines and is more economical.

6. What seat material for sugar mill service?

EPDM for ambient temperature juice, syrup, and wash water lines. NBR if petroleum-based cleaning agents are used in CIP. Confirm maximum operating temperature — EPDM is rated to 120°C, NBR to 80°C.

7. Can manual knife gate valves handle abrasive mining slurry?

Yes — specify hardened SS gate (chrome plated or hard-faced) for abrasive mining slurry and mineral concentrate lines. DI body for impact resistance. EPDM or Viton seat depending on chemical content of slurry. Regular packing replacement is expected maintenance in abrasive service.

8. What sizes are available?

50mm to 600mm standard. Larger sizes available on project basis — knife gate valves at 800mm and 1000mm are used in large paper mills and mining operations.

9. What test certificates are provided?

MTC for body and gate material, hydrostatic shell test, seat leakage test per MSS SP-81 / API 598.

10. What is the MOQ?

MOQ is 10 Nos. Bulk project quantities welcome with project-rate pricing.

11. Is the seat replaceable in the field?

Yes — the rubber seat sleeve or seat ring is replaceable without removing the valve from the pipeline in most designs. Packing replacement is also a simple field maintenance task. This is a key maintenance advantage of knife gate valves over butterfly valves in slurry service.

12. Can I order CI body and WCB body knife gate valves in one order?

Yes — Krishna Industries supplies CI, DI, WCB, SS304, and SS316 body knife gate valves in consolidated single orders — single GST invoice, single dispatch from Ahmedabad.

Conclusion

The Manual Knife Gate Valve supplied by Krishna Industries (KELOR) is the correct no-power, low-cost isolation solution for slurry, pulp, wastewater, and fibrous media service — Cast Iron, Ductile Iron, WCB, SS304, SS316 body — SS304 / SS316 sharp-edged gate — EPDM, NBR, Viton seat — handwheel operated (gearbox for 350mm and above) — wafer and lug type — sizes 50mm to 600mm — PN10 / PN16 — MSS SP-81. Sourced from verified Indian manufacturers with MTC, test certificates, and full GST documentation. Fast PAN India dispatch from Ahmedabad.

For STP / ETP contractors, paper mill and mining MRO teams, sugar mill buyers, cement plant purchase managers, and EPC project buyers — contact Krishna Industries (KELOR), your trusted Manual Knife Gate Valve supplier in Ahmedabad, Gujarat, India. WhatsApp your size, body material, seat, and quantity for bulk pricing within 2 hours.
