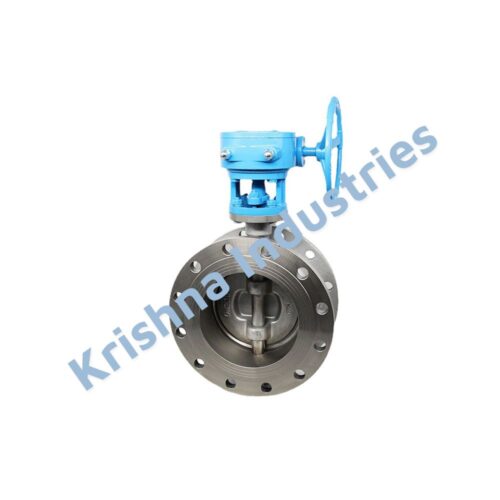

Triple Eccentric Wafer Type Butterfly Valve Metal & Soft Seated

Description

TRIPLE ECCENTRIC WAFER TYPE BUTTERFLY VALVE – METAL & SOFT SEATED
Manufactured & Supplied by Krishna Industries, Ahmedabad, Gujarat, India

INTRODUCTION

In modern industrial flow control systems, the demand for reliable shut-off, zero leakage, long service life, and minimal maintenance has increased significantly. Industries such as power plants, refineries, steel plants, chemical processing units, water treatment facilities, cement plants, and large infrastructure projects require valves that can withstand high pressure, high temperature, corrosive media, and continuous operation. To meet these demanding conditions, the Triple Eccentric Wafer Type Butterfly Valve has emerged as one of the most advanced and dependable valve designs available in the Indian industrial market.

Krishna Industries, based in Ahmedabad, Gujarat, India, offers high-quality Triple Eccentric Wafer Type Butterfly Valves in both metal seated and soft seated designs, specifically engineered to meet Indian operating conditions, Indian standards, and Indian buyer expectations. With strong technical understanding, reliable sourcing, and strict quality control, Krishna Industries positions itself as a trusted supplier for industries across India seeking performance-oriented butterfly valves at competitive prices.

Unlike concentric or double eccentric butterfly valves, the triple eccentric design eliminates rubbing between the disc and seat during operation. This design innovation ensures extended service life, tight shut-off, and consistent performance even in severe service applications. These valves are widely used as isolation valves in pipelines carrying steam, thermal oil, gas, water, chemicals, hydrocarbons, and other process fluids.

The Triple Eccentric Wafer Type Butterfly Valve is often compared alongside high-performance butterfly valves, metal seated butterfly valves, soft seated butterfly valves, wafer type butterfly valves, and zero leakage isolation valves. These related valve categories highlight the versatility and technical superiority of triple eccentric designs in industrial flow control systems.

Krishna Industries focuses on supplying these valves to Indian buyers including EPC contractors, project consultants, industrial plants, maintenance departments, OEMs, dealers, and bulk traders who require dependable valves with assured quality and after-sales support within India.

PRODUCT OVERVIEW

The Triple Eccentric Wafer Type Butterfly Valve is designed with three distinct offsets between the shaft, disc, and seat geometry. This triple offset design ensures that the disc only contacts the seat at the final moment of closure, achieving a cam-like action that provides tight shut-off without frictional wear.

The wafer type construction allows easy installation between flanges, reduces weight, and saves space compared to lug or double-flanged valves. This makes it an ideal solution for large diameter pipelines where compact design and cost efficiency are important.

Krishna Industries supplies both metal seated and soft seated variants to suit different service conditions. Metal seated valves are preferred for high-temperature, high-pressure, and abrasive services, while soft seated valves are ideal for applications requiring bubble-tight shut-off at relatively lower temperatures.

DESIGN FEATURES AND ENGINEERING

Triple Eccentric Design
The triple eccentric geometry consists of three offsets: the shaft is offset from the disc center, the shaft is offset from the pipeline centerline, and the sealing surface is inclined. This design eliminates seat wear and ensures smooth operation.

Wafer Type Body Construction
The wafer type body is compact, lightweight, and suitable for installation between standard flanges. It reduces installation cost and is especially suitable for space-constrained piping systems.

Metal Seated Option
Metal seated triple eccentric butterfly valves are designed for high-temperature and high-pressure services. The seat is typically made from stainless steel or hard-faced alloy, ensuring durability and resistance to thermal expansion.

Soft Seated Option
Soft seated versions use materials such as PTFE, reinforced PTFE, or elastomers depending on application requirements. These valves provide excellent sealing performance for water, air, and low-temperature process media.

Bi-Directional Sealing
The valve design allows tight sealing in both flow directions, making it suitable for complex piping layouts.

Low Operating Torque
Due to the friction-free sealing mechanism, operating torque is significantly lower than conventional butterfly valves, reducing actuator size and operating cost.

Fire Safe Construction
Metal seated variants can be supplied with fire-safe design suitable for critical applications.

MATERIAL OF CONSTRUCTION

Krishna Industries offers Triple Eccentric Wafer Type Butterfly Valves in various material combinations to suit Indian industrial requirements.

Body Materials
Cast Iron
Ductile Iron
Carbon Steel
Stainless Steel

Disc Materials
Carbon Steel
Stainless Steel
Alloy Steel

Seat Materials
Stainless Steel
Hard Faced Alloy
PTFE
Reinforced PTFE

Shaft Materials
Stainless Steel
Alloy Steel

Sealing Materials
Graphite
PTFE
Elastomer (for soft seated versions)

These material options allow buyers to select the valve suitable for water, steam, oil, gas, chemical, and industrial process applications.

TECHNICAL SPECIFICATIONS

Valve Type: Triple Eccentric Butterfly Valve
End Connection: Wafer Type
Seating Type: Metal Seated / Soft Seated
Operation: Lever, Gear Operated, Pneumatic Actuator, Electric Actuator
Pressure Rating: Suitable for standard industrial pressure classes
Temperature Range: Depends on seat material selection
Flow Direction: Bi-directional
Leakage Class: Zero leakage in metal seated design under specified conditions
Installation: Between flanges

Krishna Industries ensures that each valve supplied meets Indian project requirements and is suitable for long-term industrial use.

APPLICATIONS IN INDIAN INDUSTRIES

The Triple Eccentric Wafer Type Butterfly Valve supplied by Krishna Industries is widely used across various Indian industries.

Power Plants
Used in steam lines, cooling water systems, and auxiliary pipelines where high temperature and reliability are critical.

Oil and Gas Industry
Ideal for isolation of hydrocarbon lines, gas pipelines, and refinery processes.

Chemical and Process Industries
Suitable for corrosive and aggressive media when supplied with appropriate materials.

Water and Wastewater Treatment
Used in raw water, treated water, and effluent pipelines requiring tight shut-off and long service life.

Cement and Steel Plants
Handles high-temperature gases, dust-laden air, and process fluids.

HVAC and Utility Systems
Used in large diameter pipelines for flow isolation.

WHY TRIPLE ECCENTRIC BUTTERFLY VALVE IS PREFERRED

Compared to conventional butterfly valves, the triple eccentric design offers longer life, minimal maintenance, and reliable performance. Indian industries increasingly prefer these valves for critical isolation duties due to their superior sealing and durability.

The wafer type construction further reduces installation cost and overall system weight, which is a major advantage in large-scale projects.

QUALITY ASSURANCE BY KRISHNA INDUSTRIES

Krishna Industries follows strict quality practices while supplying Triple Eccentric Wafer Type Butterfly Valves. Each valve is inspected for dimensional accuracy, material quality, and operational smoothness before dispatch.

As a supplier based in Ahmedabad, Gujarat, Krishna Industries understands Indian industrial conditions and ensures that supplied valves meet site requirements and performance expectations.

SUPPLY CAPABILITY AND MOQ

Minimum Order Quantity is 10 numbers.
Krishna Industries focuses on bulk supply to Indian buyers including contractors, dealers, and industrial users.

PACKAGING AND DELIVERY

Valves are packed securely to prevent damage during transportation. Domestic delivery across India is supported through reliable logistics partners.

POSITIONING OF KRISHNA INDUSTRIES

Krishna Industries is positioned as a dependable supplier of Triple Eccentric Wafer Type Butterfly Valves from Ahmedabad, Gujarat, India. The company caters exclusively to Indian buyers, offering technical guidance, competitive pricing, and consistent supply.

With strong market understanding and supplier coordination, Krishna Industries supports industrial growth across India by providing reliable flow control solutions.

FREQUENTLY ASKED QUESTIONS

1. What is a triple eccentric butterfly valve?
A triple eccentric butterfly valve is a high-performance valve designed with three offsets to ensure zero friction sealing and long service life.

2. What is the difference between metal seated and soft seated versions?
Metal seated valves are used for high temperature and pressure, while soft seated valves are suitable for lower temperature applications requiring tight shut-off.

3. Is this valve suitable for Indian industrial applications?
Yes, the valves supplied by Krishna Industries are suitable for Indian industries and operating conditions.

4. What is the minimum order quantity?
The minimum order quantity is 10 numbers.

5. Can this valve be used for steam service?
Yes, metal seated triple eccentric butterfly valves are suitable for steam applications.

6. Is the valve bi-directional?
Yes, the design allows bi-directional flow and sealing.

7. What type of operation is available?
Manual, gear operated, pneumatic actuated, and electric actuated options are available.

8. Where is Krishna Industries located?
Krishna Industries is based in Ahmedabad, Gujarat, India.

9. Are these valves suitable for large diameter pipelines?
Yes, wafer type construction makes them ideal for large diameter pipelines.

10. Does Krishna Industries supply across India?
Yes, Krishna Industries supplies to customers across India through domestic logistics networks.

CONCLUSION

The Triple Eccentric Wafer Type Butterfly Valve Metal & Soft Seated supplied by Krishna Industries represents a robust, efficient, and long-lasting solution for industrial flow control in India. With advanced design, reliable materials, and strong supplier support from Ahmedabad, Gujarat, these valves are ideal for industries seeking performance, durability, and value.

Krishna Industries continues to support Indian industries by supplying quality valves that meet modern engineering demands while maintaining cost efficiency and dependable service.
