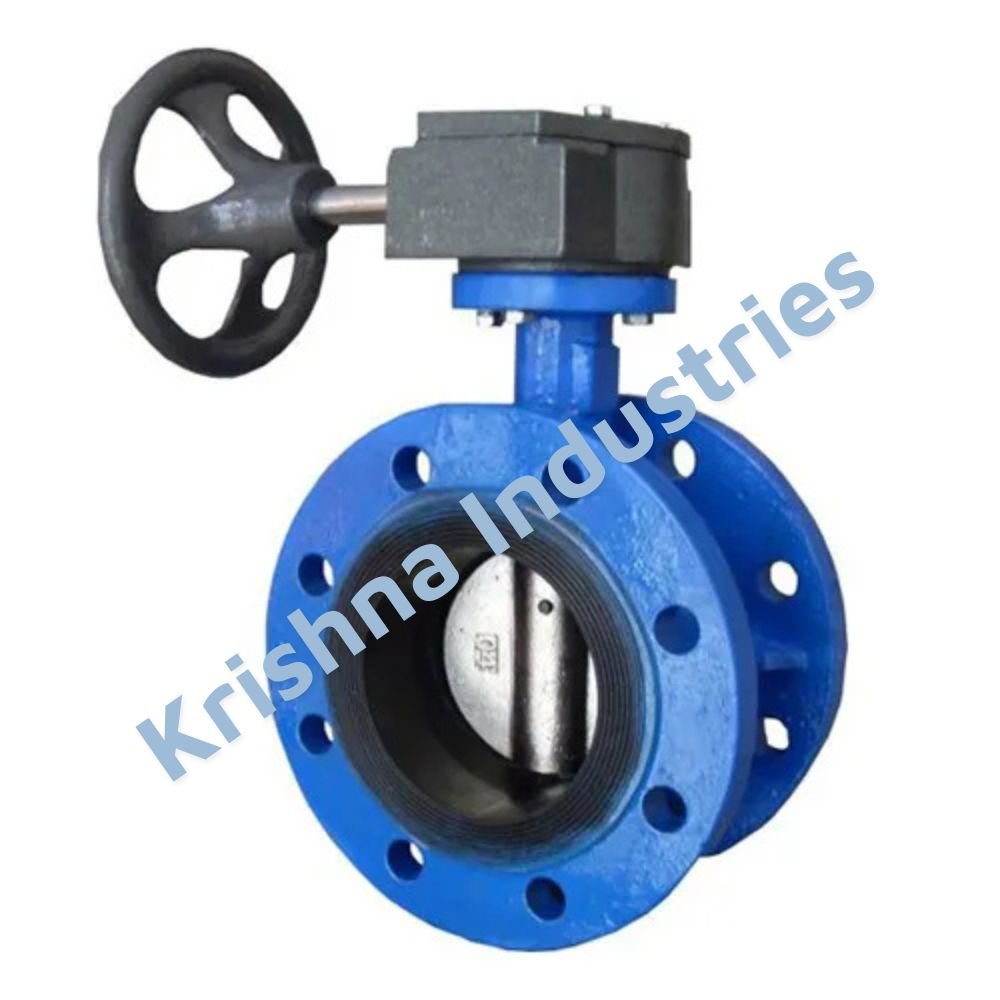

Gear Operated Wafer Butterfly Valve DN200 to DN600 (High Torque)
Engineered for large-bore pipeline control. Our gear operated wafer butterfly valve DN200 and larger models feature heavy-duty worm gear reduction, robust CI/DI bodies, and precision-machined discs. Designed to safely manage high breakaway torque in water, HVAC, power, and chemical applications across India.
Featured Insight: A gear operated wafer butterfly valve DN200 and above is mandatory for large-bore pipelines because the fluid pressure acting on the disc generates immense breakaway torque. A standard lever cannot safely overcome this force. A worm gear operator provides mechanical advantage (gear reduction), allowing a single operator to smoothly and safely open or close the valve without risk of physical injury or valve stem shearing, while also enabling precise throttling control.
At-A-Glance Specifications
Contents
- 1. Why Gear Operation is Mandatory for DN200+
- 2. High Torque Data & Engineering Specifications
- 3. Advanced Design Features for Large Bore Valves
- 4. Material Selection for Indian Conditions
- 5. Target Applications: Water, Power & HVAC
- 6. Why EPC Contractors Specify KELOR Valves
- 7. Frequently Asked Questions (PAA)
Why Gear Operation is Mandatory for DN200+
In pipeline engineering, valve actuation must match the physical realities of fluid dynamics. For a gear operated wafer butterfly valve DN200 and larger, the surface area of the disc is substantial. When the pipeline is under pressure (e.g., PN16 / 16 Bar), the differential pressure creates massive friction between the disc edge and the resilient seat.
Attempting to operate a DN200+ valve with a manual lever is not just difficult; it is a severe safety hazard. It can lead to:
- Operator Injury: Sudden “kickback” or excessive force required can cause wrist, shoulder, or back injuries.
- Stem Shearing: Excessive manual force applied to a lever can exceed the yield strength of the valve stem, causing catastrophic mechanical failure.
- Poor Throttling Control: Levers offer binary (open/close) movement. Gear operators allow for precise, incremental 90-degree positioning, which is critical for flow regulation in large mains.
The worm gear mechanism multiplies the input force from the handwheel, reducing the required operating torque by a factor of 10x to 30x, ensuring smooth, safe, and controlled operation.
High Torque Data & Engineering Specifications
Proper actuator or gear box sizing requires accurate torque data. Below are the typical torque requirements for our large bore wafer butterfly valves at PN16 pressure with standard EPDM seats. (Note: PTFE seats require approximately 20-30% higher torque).
Table: Breakaway & Running Torque (Nm) at PN16| Valve Size (DN) | Breakaway Torque (Nm) | Running Torque (Nm) | Seating Torque (Nm) | Recommended Gear Ratio |
|---|---|---|---|---|
| DN200 (8″) | 180 – 220 | 110 – 140 | 130 – 160 | 15:1 to 20:1 |
| DN250 (10″) | 280 – 340 | 170 – 210 | 200 – 250 | 20:1 to 25:1 |
| DN300 (12″) | 400 – 480 | 240 – 290 | 290 – 350 | 25:1 to 30:1 |
| DN400 (16″) | 750 – 900 | 450 – 550 | 550 – 650 | 30:1 to 40:1 |
| DN500 (20″) | 1200 – 1450 | 720 – 880 | 880 – 1050 | 40:1 to 50:1 |
| DN600 (24″) | 1800 – 2200 | 1100 – 1350 | 1350 – 1600 | 50:1 to 60:1 |
Engineering Safety Factor Rule
When specifying gear operators or pneumatic/electric actuators for these valves, always apply a minimum 1.5x safety factor to the maximum breakaway torque. This accounts for pressure surges, temperature variations, and long-term seat compression, ensuring the actuator never stalls or fails under peak load.
Advanced Design Features for Large Bore Valves
ISO 5211 Mounting Pad
Every gear operator features a standardized ISO 5211 top flange. This future-proofs your pipeline, allowing seamless retrofitting of electric or pneumatic actuators for SCADA/DCS integration without replacing the valve body.
Visual Position Indicator
The gear housing includes a clear, durable dial indicator showing the exact degree of disc rotation (0° to 90°). This allows control room operators or field technicians to verify valve status from a distance without physical inspection.
Blow-Out Proof Stem Design
For DN200 to DN600, the stem is integrally machined with the disc and secured with a retaining mechanism at the top. This prevents the stem from being ejected upward in the event of a reverse-pressure surge or water hammer.
Sealed Gear Housing
The worm gear mechanism is housed in a robust, weather-resistant enclosure (often epoxy-coated cast iron or aluminum) packed with high-temperature lithium grease, requiring zero maintenance for the life of the valve.
Material Selection for Indian Conditions
Indian industrial environments demand robust materials. KELOR offers tailored configurations based on your specific media:
| Component | Standard Configuration (Water/HVAC) | Heavy Duty / Chemical Upgrade |
|---|---|---|
| Body | Cast Iron (IS 210 FG200) | Ductile Iron (ASTM A536 65-45-12) for higher pressure/shock resistance. |
| Disc | Ductile Iron (Epoxy Coated) | CF8 (SS304) or CF8M (SS316) for corrosive or treated water. |
| Seat | EPDM (Excellent for water up to 80°C) | PTFE (Teflon) for aggressive chemicals or temperatures up to 180°C. |
| Stem | SS410 / SS420 (Martensitic Stainless) | SS304 / SS316 for maximum corrosion resistance. |
Target Applications: Water, Power & HVAC
Municipal Water Transmission
The backbone of Jal Jeevan Mission and AMRUT projects. DN300 to DN600 gear operated valves are used for mainline isolation, reservoir inlet/outlet control, and pump station discharge, where reliability is non-negotiable.
Thermal & Nuclear Power
Used in large-diameter cooling water circulation systems, condenser inlet/outlet isolation, and ash slurry handling (with rubber-lined or specialized discs). The gear operator allows safe throttling to balance flow across multiple cooling towers.
Large-Scale HVAC & District Cooling
Primary and secondary chilled water loops in IT parks, airports, and hospitals. DN200-DN400 gear valves provide the precise modulation needed for variable flow systems, preventing water hammer during chiller sequencing.
Industrial Ducting & Air Handling
As seen in our damper-style configurations, these valves are also adapted for large-bore air, flue gas, and ventilation ducting in cement, steel, and power plants, where low-pressure drop and reliable isolation are critical.
Why EPC Contractors Specify KELOR Valves
Verified Torque Performance
We don’t guess. Every gear operator is matched to the valve size and pressure rating with a documented safety factor, preventing the under-sizing that plagues cheaper alternatives.
100% API 598 Hydrostatic Testing
Every DN200+ valve undergoes rigorous shell testing (1.5x rated pressure) and seat leakage testing (1.1x rated pressure). Certificates are provided with every dispatch.
Complete Project Documentation
We support EPC tenders with full QA/QC dossiers: Material Test Certificates (MTC), GA drawings, torque charts, and coordination for third-party inspection (TUV, BV, Lloyd’s).
PAN India Logistics Excellence
Dispatched from our Ahmedabad facility via heavy-duty logistics partners (VRL, TCI). Standard DN200-DN400 sizes are kept in strategic stock for 5-7 day delivery across India.
Commercial & Ordering Details
Specify the Right Torque for Your Pipeline
Don’t risk valve failure or operator injury with under-specified actuators. Share your pipeline size, pressure, and media. We will calculate the exact torque and provide a competitive quote within 2 hours.
Get Technical Quote via WhatsAppRelated Large Bore Solutions
Frequently Asked Questions (PAA)
1. Why is a gear operator mandatory for a wafer butterfly valve DN200 and above?
2. What is the torque requirement for a DN300 gear operated butterfly valve?
3. Can I automate a gear operated wafer butterfly valve later?
4. Do you supply large bore butterfly valves for Indian water and power projects?
Specify KELOR Gear Operated Valves
Engineered for high torque, tested for reliability, and dispatched PAN India.
- DN200 to DN600 Size Range
- CI / Ductile Iron / SS316 Bodies
- ISO 5211 Actuator-Ready Mounting
- API 598 Tested with MTC Provided
- 5-7 Day Dispatch from Ahmedabad
