Industrial Butterfly Valve Supplier India: Types & Specs

Select the variant that matches your project requirement. Each type is available in multiple body materials, seat options, and end connections. All butterfly valve types listed below are supplied from verified Indian manufacturers with API 598 testing and full documentation support including GST invoice, MTC, and hydrostatic test certificates. For critical applications requiring zero leakage under high pressure and temperature, we are a trusted high performance double eccentric butterfly valve manufacturer India offering specialized metal-seated designs.

Wafer Type vs Lug Type Butterfly Valve — Which to Specify?

Understanding the difference between wafer type and lug type butterfly valves is essential for correct specification on every project. Getting this wrong leads to installation problems, maintenance access issues, and potential safety hazards during pipeline maintenance or emergency shutdown. The two types look similar but serve fundamentally different piping system design requirements.

A wafer type butterfly valve is clamped between two pipeline flanges using stud bolts — both upstream and downstream flanges must remain in place. It is the standard, most economical configuration for in-line isolation service in water pipelines, HVAC circuits, ETP/STP plants, and fire fighting systems. Wafer type is lighter, shorter in face-to-face dimension (per ISO 5752 Series 20 / MSS SP-67), and lower in cost. The wafer design does not allow independent disconnection of one side of the pipeline — the entire line section must be depressurised and unbolted to remove the valve. This limitation is acceptable in most in-line isolation applications where both sides of the valve remain connected throughout the plant operating life.

A lug type butterfly valve has threaded lugs (ears) that bolt independently to each pipeline flange. This allows downstream piping removal while the valve stays bolted to the upstream flange — making it the correct choice for dead-end service, pump discharge lines, and pipeline terminations where downstream pipework may need to be removed for maintenance. Lug type is also specified when one side of the line requires blanking off during system testing or commissioning. The lug body is heavier and more expensive than wafer type but provides significantly greater flexibility in piping system design, maintenance access, and future system modification. For pump discharge applications, the lug type allows the pump and valve to remain in place while the downstream piping is removed for pump inspection or impeller replacement.

For large-scale infrastructure requirements, we handle wafer and lug type butterfly valve wholesale India orders efficiently, providing consolidated bulk pricing and streamlined dispatch logistics to project sites across the country.

Technical Specifications

Body Material Selection Guide

Choosing the correct body material ensures long valve life and safe operation in your specific service conditions. The table below helps engineers and purchase managers select the right grade based on the process fluid, operating temperature, and application environment. Selecting a material that is incompatible with your service media leads to premature corrosion, seat degradation, and potential leakage — so this decision directly affects plant safety and maintenance cost. The most common mistake in butterfly valve specification is using CI body in a corrosive chemical service where PTFE lined or SS316 body should have been specified.

Seat Material Selection — EPDM vs NBR vs PTFE

The seat (also called the seal or liner) is the component that provides bubble-tight shut-off against the disc. Selecting the correct seat material is as important as selecting the body material — an incompatible seat will degrade quickly, leading to leakage and valve failure. The three most common seat materials for butterfly valves in Indian industrial applications are EPDM, NBR, and PTFE, each suited to different service conditions. The seat is the wear component in a resilient-seated butterfly valve and will need replacement during valve maintenance — so selecting a seat material with adequate chemical and temperature compatibility extends maintenance intervals and reduces total cost of ownership.

Lever vs Gear vs Electric vs Pneumatic — Selecting the Right Operation Type

The operating mechanism determines how the butterfly valve disc is rotated. The correct choice depends on valve size, operating frequency, access to the valve location, availability of power or instrument air, and whether remote or automated control is required. Specifying the wrong operation type increases installation cost, creates access problems, and may compromise safety in emergency shutdown scenarios. The four standard operation types for butterfly valves are lever, gear, electric actuator, and pneumatic actuator — each serving a specific range of applications in industrial piping systems.

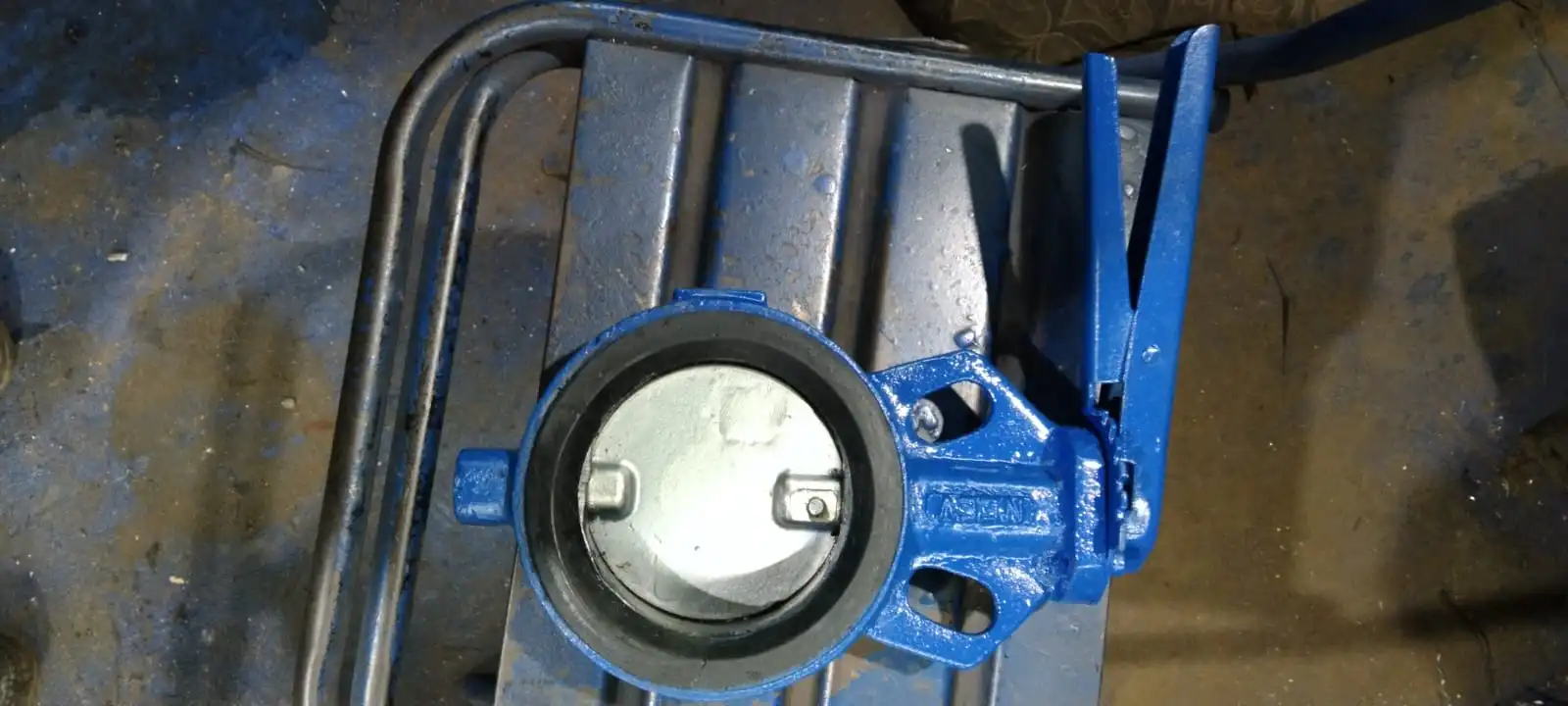

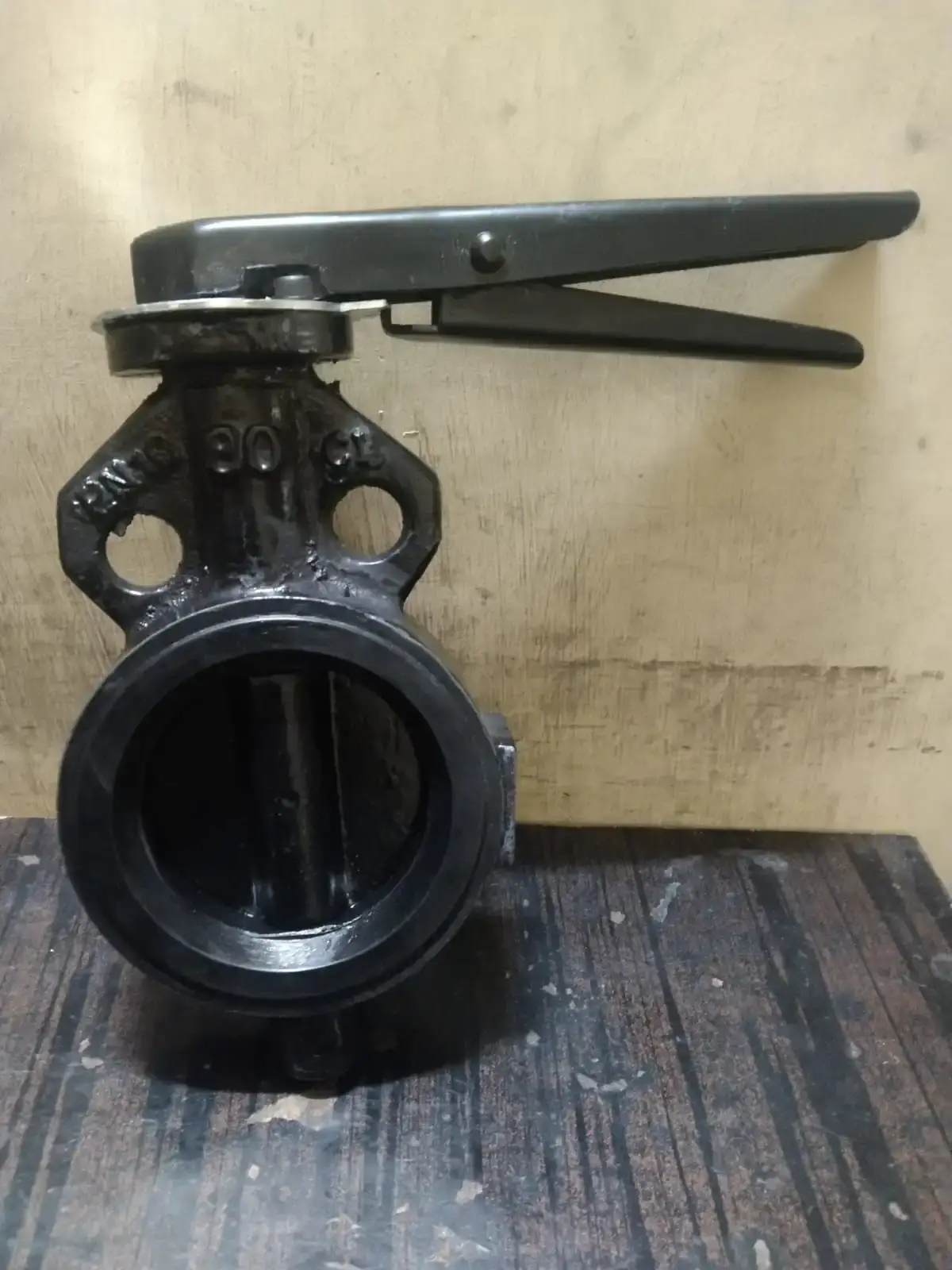

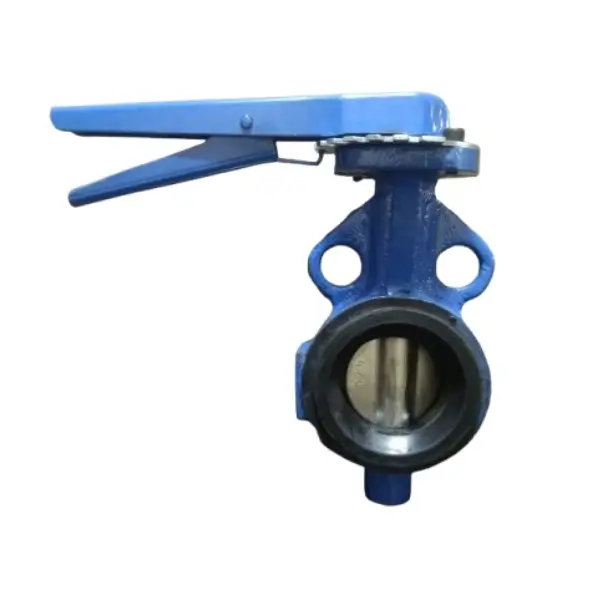

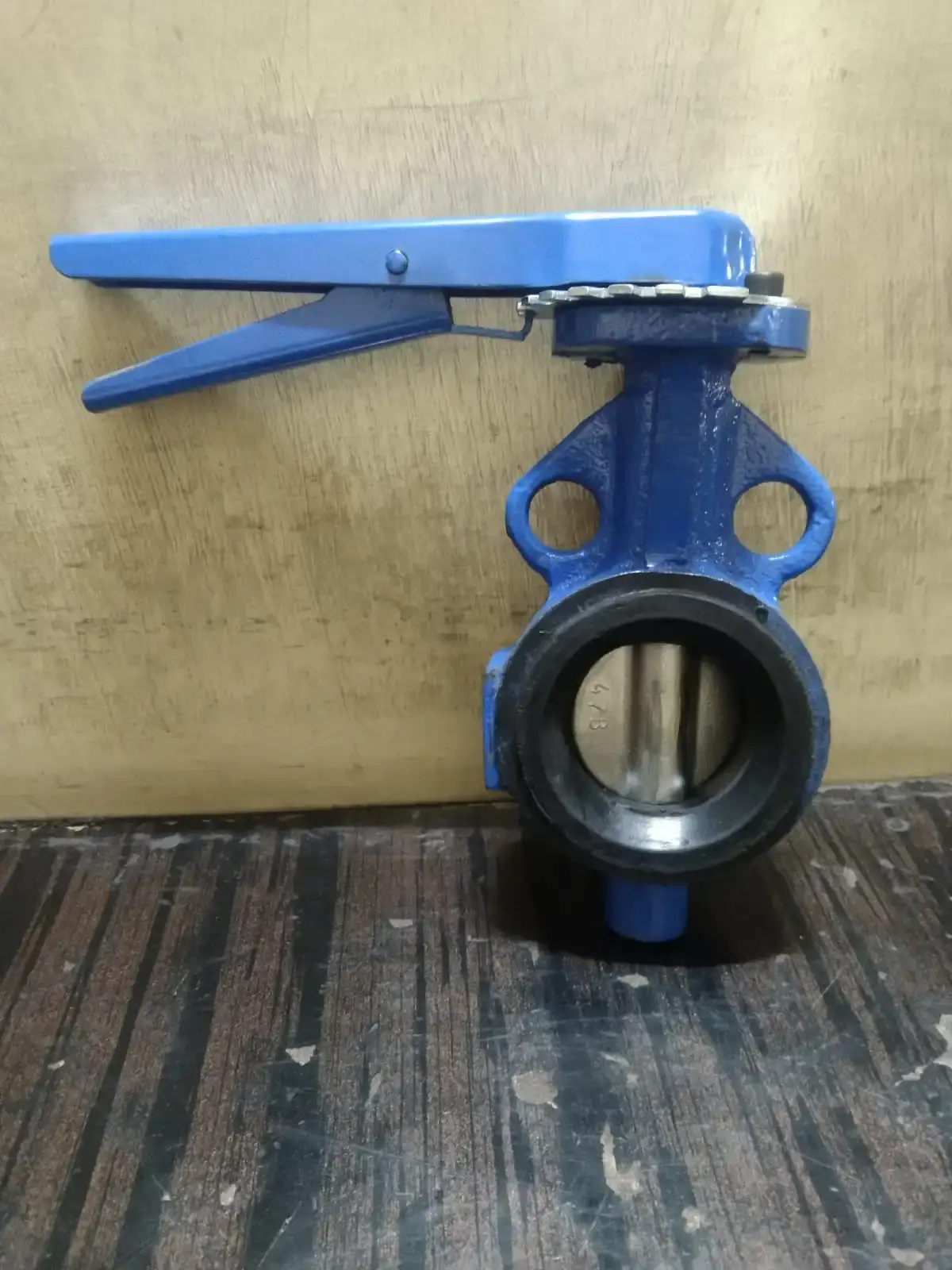

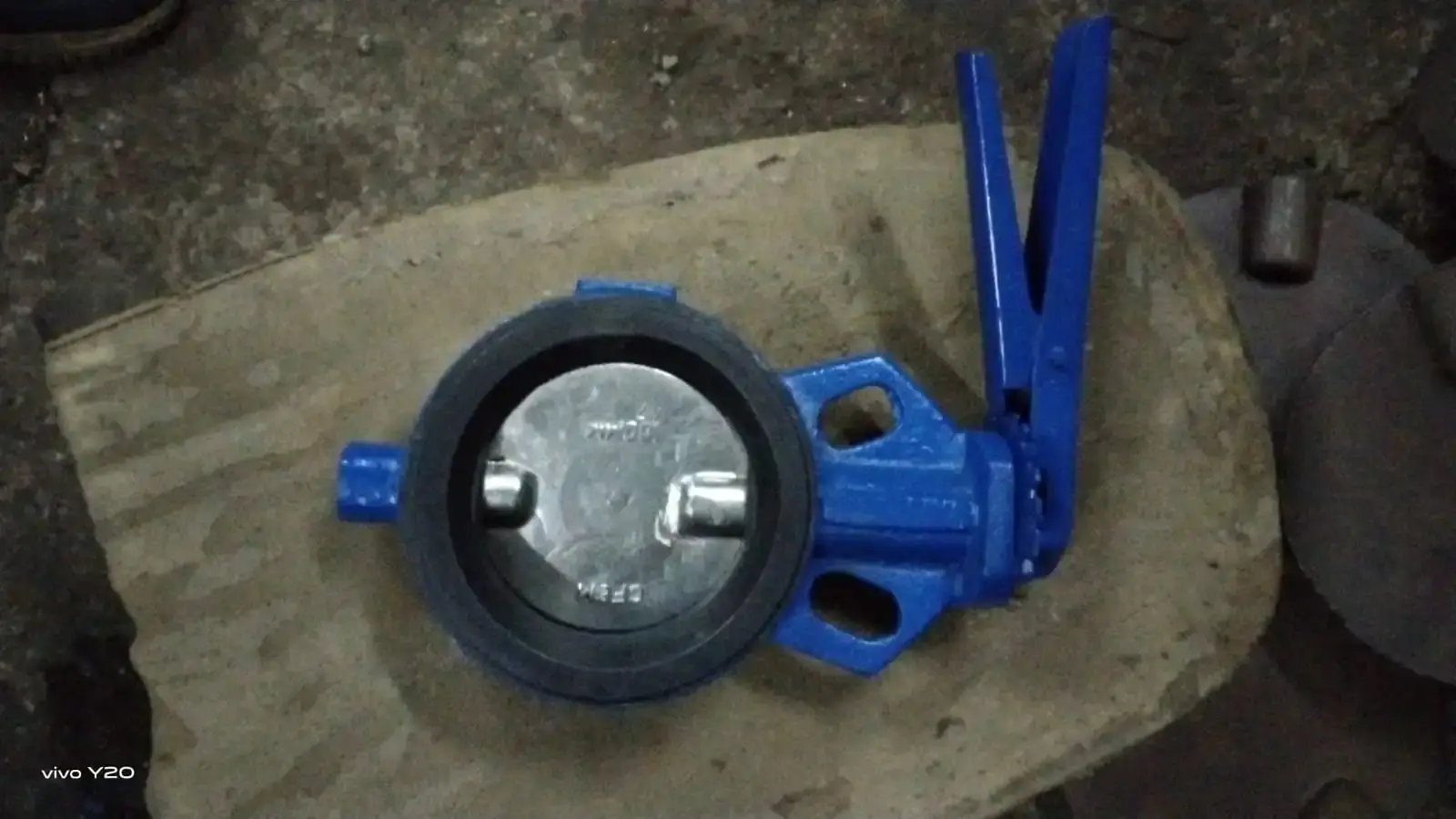

Lever operated butterfly valve is the simplest and most economical option. A direct quarter-turn lever handle is used — suitable for DN50 to DN150 (2 inch to 6 inch) where manual torque is comfortable for operators. Lever operation is standard for HVAC plant rooms, small-bore water isolation, and applications where valves are operated infrequently and are easily accessible. The lever provides visual position indication (handle orientation shows open/closed status). Lever handles are typically lockable with a padlock for safety lockout/tagout (LOTO) during maintenance.

Gear operated butterfly valve uses a worm gear with handwheel — multiple handwheel turns open and close the disc through a gear reduction mechanism. This significantly reduces the force required to operate large bore valves. Gear operation is standard for DN150 (6 inch) and above where lever torque becomes too high for comfortable manual operation. It can also be specified from DN100 when the valve is in a difficult access location or operated frequently. Gear operators can be fitted with position indicators and limit switches for remote status monitoring — allowing the control room to see valve open/closed status without field inspection.

Electric actuated butterfly valve (220V AC) is specified when no instrument air is available at the valve location — common for HVAC plant rooms, ETP/STP installations, and remote water treatment plants. Electric actuators support BMS (Building Management System) integration with on/off or modulating 4-20mA control signals for automated flow regulation. Electric actuation is preferred when slow-stroke modulating control is needed for HVAC chilled water circuits or when the plant DCS/SCADA system uses electrical control signals. Electric actuators are available with IP67 weatherproof enclosure for outdoor installation and fail-safe position (spring return) on power failure.

Pneumatic actuated butterfly valve is specified when fast stroke time (under 15 seconds) is required for process safety, when spring-return fail-safe to a defined position on air failure is a safety requirement, or when instrument air is already available at the valve location and high-cycle automation is needed. Pneumatic actuators are standard in chemical plants, oil and gas installations, and process industries where fail-safe operation and fast response are critical. Pneumatic actuators are available in spring-return (single acting — fails to closed or open on air failure) and double acting (air to open, air to close — requires continuous air supply) configurations.

Industries and Applications

Butterfly valves are used across virtually every process industry in India for isolation and regulation of fluid flow. The compact wafer design, lightweight construction, and economical pricing make butterfly valves the default isolation valve choice for water, HVAC, and general industrial applications — replacing gate valves in most non-critical service lines. Below are the key application sectors where Krishna Industries supplies butterfly valves PAN India.

Technical Advantages of Butterfly Valves

Butterfly valves offer significant engineering and commercial advantages over gate valves, globe valves, and other isolation valve types in most non-critical industrial applications. Understanding these advantages helps engineers and purchase managers make informed valve selection decisions that reduce installation cost, simplify maintenance, and improve plant reliability.

• Compact wafer design — up to 60% shorter face-to-face than gate valves — ideal for space-constrained installations in plant rooms, utility shafts, and skid-mounted packages where piping layout is tight
• Quarter-turn fast operation — 90 degree open to close — lever for DN50–DN150, gear handwheel for DN150+, electric or pneumatic actuator for remote and automated control
• Low pressure drop — disc parallel to flow when fully open — minimal flow resistance — lower energy consumption compared to gate valve in the fully open position
• Resilient seat bubble-tight shut-off — EPDM/NBR/PTFE seat provides Class VI zero leakage at rated pressure — suitable for isolation duty in water, chemical, and HVAC service
• Lightweight construction — significantly lighter than gate or globe valves of equivalent size — reduces pipe support cost, eases handling during installation, and lowers freight cost for large bore orders
• Universal flange compatibility — wafer body fits between ANSI B16.5 / DIN PN10/PN16 / IS 1538 flanges without modification — no special flange facing or gasket requirements
• Horizontal and vertical installation — any orientation — no flow direction restriction (check arrow on body for disc shaft orientation and correct installation)
• Lug type for dead-end service — lug body allows downstream piping removal while valve stays in place — standard for pump discharge, pipeline terminations, and test blanking applications
